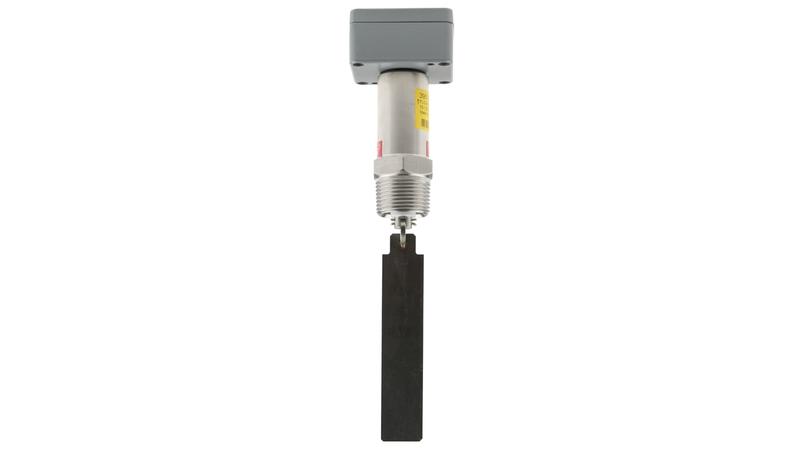

020-3499 Gems Sensors FS-550E Series Paddle Flow Sensor for Liquid, 15 L/min Min, 125 L/min Max

Gems Sensors Flow Switch_x000D_ The Gems FS-550E series flow switch has a liquid flow rate of 15L/min to 125L/min. This switch senses the liquid flow in either direction to monitor flow/ no-flow conditions. The paddle is trimmed during installation to permit switch actuation at the desired flow rate. As the flow increases, the paddle pivots to move out of the liquid path, producing less than 200MB of pressure drop regardless of pipe size._x000D_ Features and Benefits_x000D_ Pipe diameter range is 1in_x000D_ Connection type is 1 BSP_x000D_ Stainless steel housing with terminal box electrical connection_x000D_ Minimum inline restriction_x000D_ Paddle pivots to move out of liquid path with increasing flow_x000D_ Operating temperature is maximum 150°C_x000D_ Maximum flow determined by the pipe inside diameter_x000D_ Operating pressure is 55bar_x000D_ Pressure drop is 0.2bar_x000D_ SPDT switching function_x000D_ Mounting R 1in_x000D_ Electrical connection is terminal box_x000D_ Applications_x000D_ Compressors_x000D_ Heat exchangers_x000D_ Turbines_x000D_ Engine_x000D_ Boilers_x000D_ Chillers_x000D_ Valves_x000D_ Pumps_x000D_ Regulators_x000D_ Certifications_x000D_ IP65 rated
