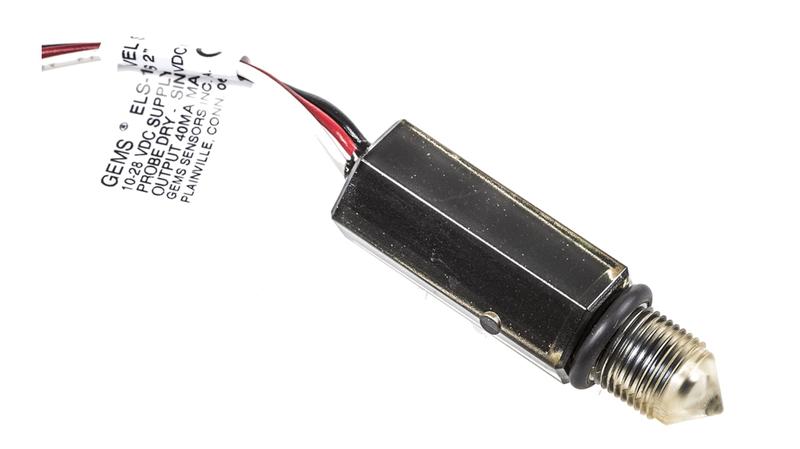

169556 Gems Sensors Horizontal, Vertical Polysulfone Float Switch, Float, Direct Load

Gems Sensors Level Switch_x000D_ The Gems Sensors ELS-1100 series horizontal/vertical level switch has a polysulfone body. It has a maximum operating pressure of 150psi. The switch has a variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match for your application. It can be mounted in any position as either a high or low-level alarm. The wet sinking switch is used in the presence of liquid and dry on the absence._x000D_ Features and Benefits_x000D_ Direct load switch output_x000D_ Small size_x000D_ Economically priced_x000D_ Built-in, solid-state electronics_x000D_ No moving part_x000D_ Triangular prism, not susceptible to droplets_x000D_ Simple, one-unit installation_x000D_ Current consumption 18mA_x000D_ Open collector output_x000D_ Non-ESD sensitive_x000D_ Polysulfone wetted parts_x000D_ Flange mount via 19mm hole or flush mount (M12 x 1mm)_x000D_ Electrical connection via lead wire 22awg PVC 0.3m_x000D_ Flange-mount versions with Viton seal are suitable for thin-walled tanks_x000D_ Applications_x000D_ Medical laboratory_x000D_ Food and beverage system_x000D_ Pharmaceuticals_x000D_ Petrochemicals_x000D_ Leak detection_x000D_ Hydraulic reservoirs_x000D_ Machine tool
