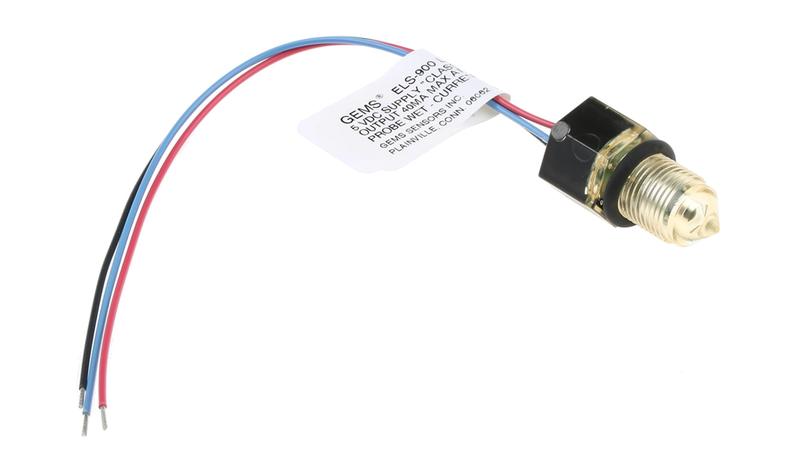

208997 Gems Sensors Electro Optic Level Probe, Horizontal, Vertical, Polyethersulfone Body

Gems Sensors Level Sensor_x000D_ The Gems level sensor is one of the smallest electro-optic sensor in the range. It also carries the highest temperature capability of any of our optic sensors. Its polyethersulfone housing extends its compatibility and is very affordable in high volumes. This sensor is excellent for industrial OEMs preferring optics with high-temperature and small space requirements. It has a supply power of 5V._x000D_ Features and Benefits_x000D_ Can be mounted in horizontal and vertical position_x000D_ High chemical corrosion resistance_x000D_ Resistance to product build-up_x000D_ Output current sink 40mA max. up to 30VDC_x000D_ Viton O-ring seal_x000D_ Internal mount via M12x1-8_x000D_ Lead length is 150mm_x000D_ Applications_x000D_ Coolant reservoir monitoring and warning_x000D_ Medical diagnostic, sterilizer, washers and dialysis equipment_x000D_ Low lubricant warning on machine tools, generator sets, on or off-highway vehicles_x000D_ Low level warning in hydraulic reservoirs_x000D_ Plastic over flow bottles, plastic radiators_x000D_ Certifications_x000D_ CE certified_x000D_ EN 61000_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
