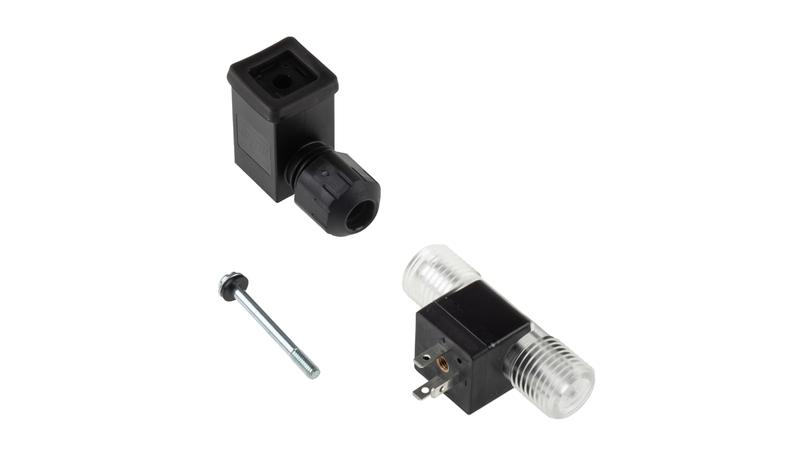

212460E Gems Sensors FT-210 Series Turbine Flow Sensor for Liquid, 0.026 gal/min Min, 0.65 gal/min Max

Gems Sensors Turbine Flow Sensor_x000D_ The Gems Sensors FT-210 series turbine flow sensor sense a liquid flow rate of 0.1L/min to 2.5L/min. It has proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for the measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to ON/ OFF dispensing applications. Each sensor is 100% tested, ensuring years of service life._x000D_ Features and Benefits_x000D_ Pipe diameter range is 1/4in_x000D_ Low-cost plus high accuracy ±3% of reading_x000D_ It is available in Nylon 12 material_x000D_ Required supply voltage is 5VDC to 24VDC_x000D_ Connection type is 1/4 BSP male_x000D_ Maximum operating pressure is 25bar_x000D_ Operating temperature rating ranges between -20°C and 100°C_x000D_ Certifications_x000D_ FDA Approved_x000D_ CE certified
