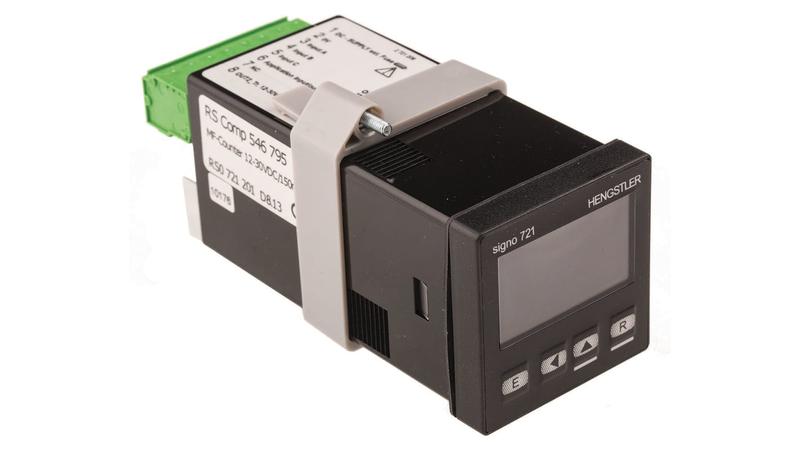

0 721 201 Hengstler SIGNO 721 Counter, 5 Digit, 60kHz, 12 → 30 V dc

Preset Counter - Signo 721.2_x000D_ Single or dual preset counter_x000D_ IP65 rated_x000D_ Counting Operating modes -one channel add or subtract; Direction mode; differential mode (add/sub); totalizing mode (add/add); phase discriminator_x000D_ Programmable reset back to 0 or back to preset 2 (externally resettable)_x000D_ Overwriting of counter reading is possible_x000D_ Keylock can be absolute or separately set to allow correction and/or prescaler_x000D_ Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30 kHz_x000D_ Note_x000D_ Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30 kHz_x000D_ Approvals_x000D_ UL, CSA_x000D_ Hengstler Panel Mounting 48 x 48_x000D_ Range of resettable counters with data retention rated at greater then 10 years. Prescaler options and Multiplier scaling outputs for correctly displaying engineering units. Units have a maximum count frequency of either 30Hz or 5kHz depending on setting. Inputs are either NPN/PNP signal or contact closure.
