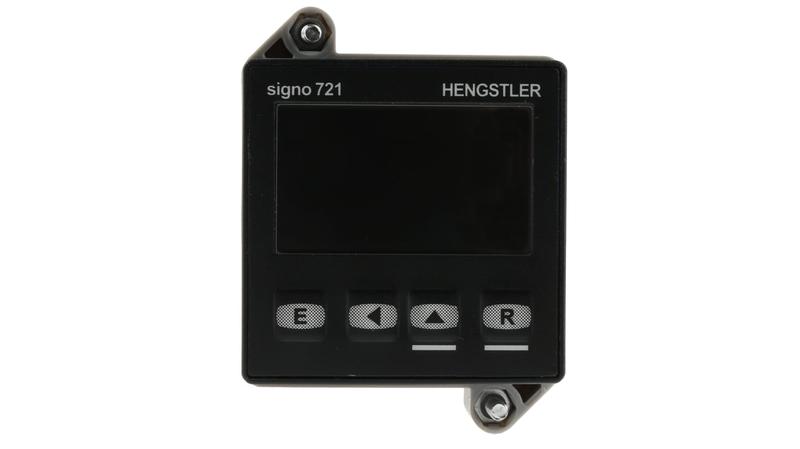

0 721 205 Hengstler SIGNO 721 Counter, 5 Digit, 60kHz, 12 → 30 V dc

Hengstler Digital Counter_x000D_ The Hengstler Signo 721 series counter is a 5-digit backlit LCD display, dual preset, totalising digital counter. This counter has a supply voltage rating ranging between 12VDC and 30VDC. Counting operating modes are one channel add or subtract_x000D_ direction mode, differential mode (add/sub), totalizing mode (add/add), and phase discriminator._x000D_ Note_x000D_ Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30kHz_x000D_ Features and Benefits_x000D_ Easy installation due to pluggable terminals_x000D_ LCD reflective or backlit_x000D_ Manual reset via keyboard_x000D_ Overwriting of counter reading is possible_x000D_ Keylock can be absolute or separately set to allow correction and/or prescaler_x000D_ Maximum count frequency of 60KHz_x000D_ Prescaler option - multiplier programmable from 0.0001 - 9.9999_x000D_ Plug-in screw terminal connection_x000D_ Impressive, clearly readable display_x000D_ Front dimensions is 48mm x 48mm_x000D_ Operating temperature ranges between 0°C and 50°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ UL approved_x000D_ CSA certified_x000D_ 2, EN 50178_x000D_ EN 61326-1 Class B
