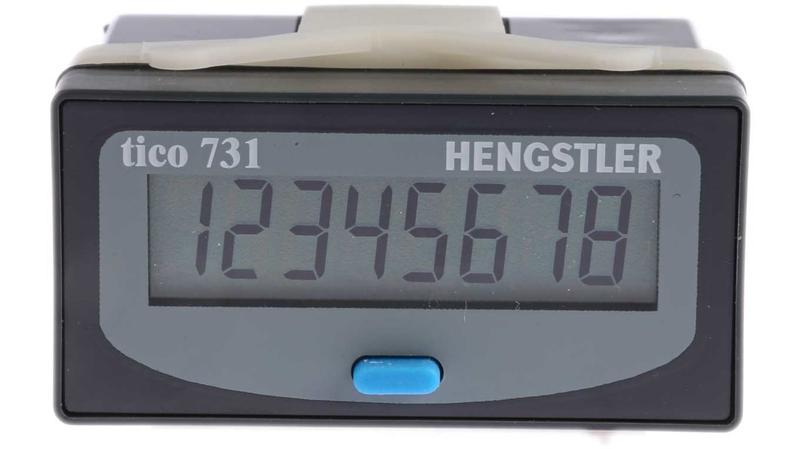

0 731 101 Hengstler TICO 731 Counter, 8 Digit, 7.5kHz

Hengstler Digital Counter_x000D_ The Hengstler TICO 731 series digital counter is a programmable and panel mount device. This counter has a voltage input simple to program. It also has an 8-digit LCD display. The power supply is from an internal lithium battery. The user can select from negative or positive edge-triggered count inputs with low count (30Hz) or high count (7.5kHz) input speeds. This counter can be reset externally or by pressing the front reset button that can also be disabled with a bridge wire. This counter has a maximum count frequency of 7.5KHz._x000D_ Features and Benefits_x000D_ Simple connection via screw terminal_x000D_ It can be used as a replacement for electro-mechanical counter_x000D_ Keylock: disabling of a reset button_x000D_ Plug-in screw terminal connection_x000D_ Front dimensions 48mm x 24mm_x000D_ Operating temperature ranges between 0°C and 50°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ IP54 rated
