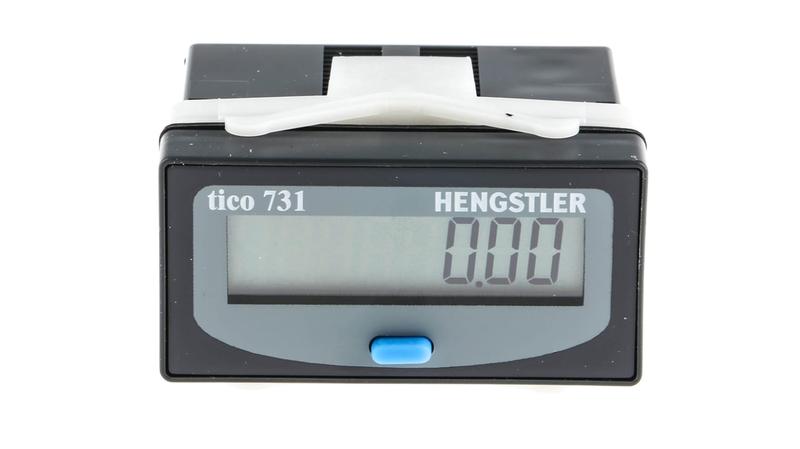

0 731 104 Hengstler TICO 731 Counter, 8 Digit, 30Hz

Hengstler Hour Counter_x000D_ The Hengstler TICO 731 series hour counter is an 8-digit self-powered electronic elapsed time meter with an LCD display. It is supplied with a spring clip for panel mounting. This counter displays in hours, minutes and seconds (HHHH:MM:SS). It can be used in conjunction with a P/E switch to convert a continuous pneumatic signal to a digital display. This time counter can be reset externally or by pressing the front reset button that can also be disabled via a bridge wire. It has a maximum count frequency of 30Hz._x000D_ This counter is powered by a 3V lithium battery._x000D_ Features and Benefits_x000D_ Resettable display_x000D_ Screw connection_x000D_ type_x000D_ Hold: display memory contact (negative, 30Hz)_x000D_ Keylock: locking of the hold button_x000D_ Gate measurement with 6 seconds measuring time in Imp/min_x000D_ Panel cut-out dimensions are 45mm x 22mm_x000D_ Operation temperature ranges between -10°C and 50°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ IP54 rated
