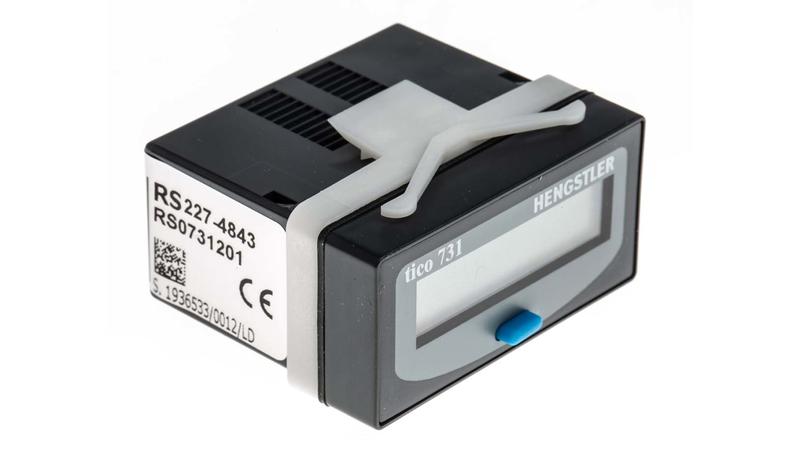

0 731 201 Hengstler TICO 731 Counter, 8 Digit, 7.5kHz, 12 → 24 V dc

Hengstler Digital Counter_x000D_ The Hengstler TICO 731 series digital impulse counter is a programmable, panel mount device. This counter has a voltage input and transistor output. It also has an 8-digit LCD display. It is lithium battery operated. This counter is simple to program, choose from negative or positive edge-triggered count inputs with low count (30Hz) or high count (7.5kHz) input speeds. The counter can be reset externally or by pressing the front reset button that can also disabled via a bridge wire._x000D_ Features and Benefits_x000D_ Units display rate per minute of pulses received_x000D_ Resettable_x000D_ Programmable Keylock_x000D_ Front dimensions is 48mm x 24mm_x000D_ Plug-in screw terminal connection_x000D_ Operating temperature ranges between 0°C and 50°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ IP54 rated_x000D_ EN 61010-1_x000D_ EN 50178, protective system II
