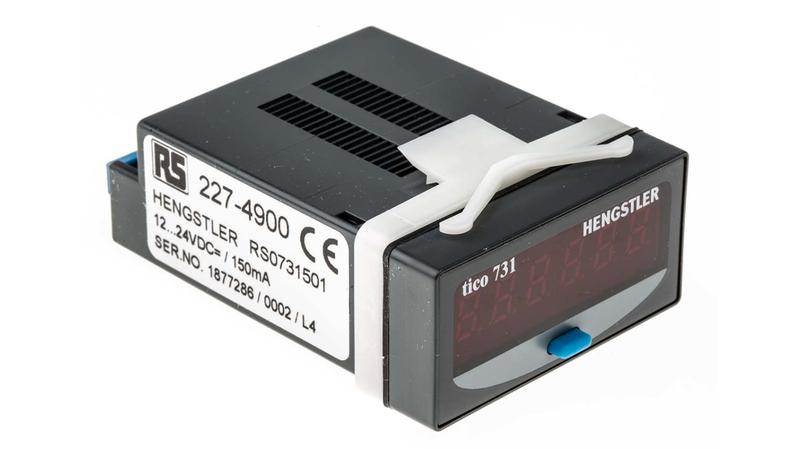

0 731 501 Hengstler TICO 731 Counter, 6 Digit, 7.5kHz, 12 → 24 V dc

Hengstler Digital Counter_x000D_ The Hengstler TICO 731 series digital impulse counter is a programmable, panel mount device. This counter has a voltage input and transistor output. It also has a 6-digit LED display. It has a voltage rating between 12VDC and 24VDC. The user can select from negative or positive edge-triggered count inputs with low count (30Hz) or high count (7.5kHz) input speeds. This counter can be reset externally or by pressing the front reset button which can also be disabled via a bridge wire. This counter has a maximum count frequency of 7.5KHz._x000D_ Features and Benefits_x000D_ Can be used as a replacement for electro-mechanical counter_x000D_ KEYLOCK: Disabling of a reset button_x000D_ OUT: Transistor output for preset signal_x000D_ INPUT 2: Control input for temporary locking of count input (gate)_x000D_ Plug-in screw terminal connection_x000D_ Front dimensions is 48mm x 24mm_x000D_ Operating temperature ranges between -10°C and 50°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP54 rated
