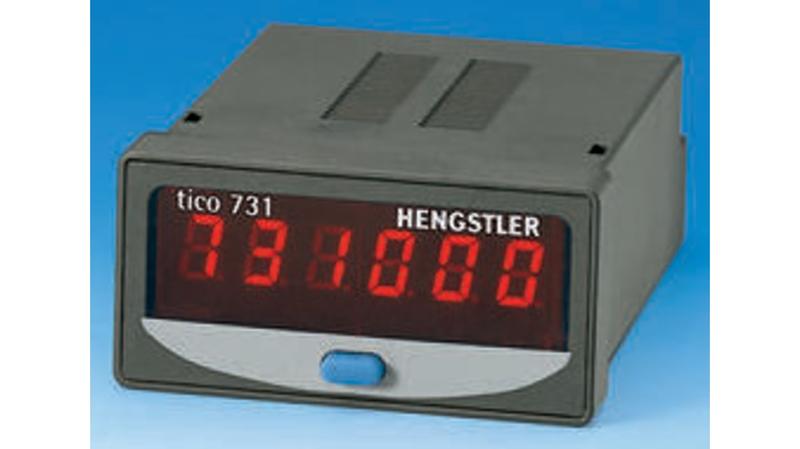

0 731 506 Hengstler TICO 731 Counter, 6 Digit, 7.5kHz, 12 → 24 V dc

Zero/Single Preset - Counter/tachometer/timer_x000D_ Multifunction units housed in a panel mounting case (DIN 43700)_x000D_ Prescaler option - multiplier programmable from 0.001 to 9.999 (counter and tachometer modes)_x000D_ The unit may be set in any of three modes: Counter Mode; Tachometer Mode; Time Meter Mode_x000D_ Counter mode: can be programmed for quadrature, differential, count/direction_x000D_ Tachometer mode: incoming pulses are counter per gate time, which can be pre-selected. Over speed or under speed can also be indicated_x000D_ Time meter mode: programmable time ranges and decimal point_x000D_ 45 x 45mm panel cutout_x000D_ Hengstler Panel Mounting 48 x 48_x000D_ Range of resettable counters with data retention rated at greater then 10 years. Prescaler options and Multiplier scaling outputs for correctly displaying engineering units. Units have a maximum count frequency of either 30Hz or 5kHz depending on setting. Inputs are either NPN/PNP signal or contact closure.
