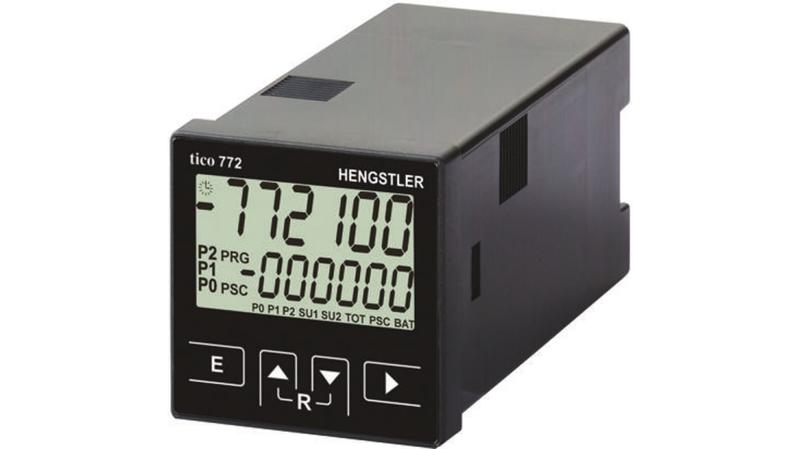

0 772 112 Hengstler TICO 772 Counter, 6 Digit, 60kHz, 24 V ac

Multifunctional Counter - tico 772_x000D_ Universally applicable as tachometer, timer, shift-counter and batch-counter_x000D_ Simplified handling_x000D_ Separate preset adjustment (signal 1, trail preset, range or limit value)_x000D_ Versatile and easy to program, 4 keys to directly address presets, prescaler and seperate totalizer_x000D_ Clearly readable display with large digits_x000D_ Display and preset range: -999 999 to +999 999_x000D_ Alarm signal: display flashes when preset 0, 1 or 2 are active_x000D_ Input frequency up to 60 kHz_x000D_ Relay outputs: 250Vac / 30Vdc / 5A_x000D_ Easy installation due to pluggable terminals_x000D_ 3 Presets_x000D_ IP65 protection (front panel)_x000D_ Typical applications:_x000D_ Time controlling_x000D_ Position indication_x000D_ Batch counting_x000D_ Cutting to length_x000D_ Rotation speed controlling_x000D_ Note_x000D_ The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted at 30 kHz_x000D_ Hengstler Panel Mounting 48 x 48_x000D_ Range of resettable counters with data retention rated at greater then 10 years. Prescaler options and Multiplier scaling outputs for correctly displaying engineering units. Units have a maximum count frequency of either 30Hz or 5kHz depending on setting. Inputs are either NPN/PNP signal or contact closure.
