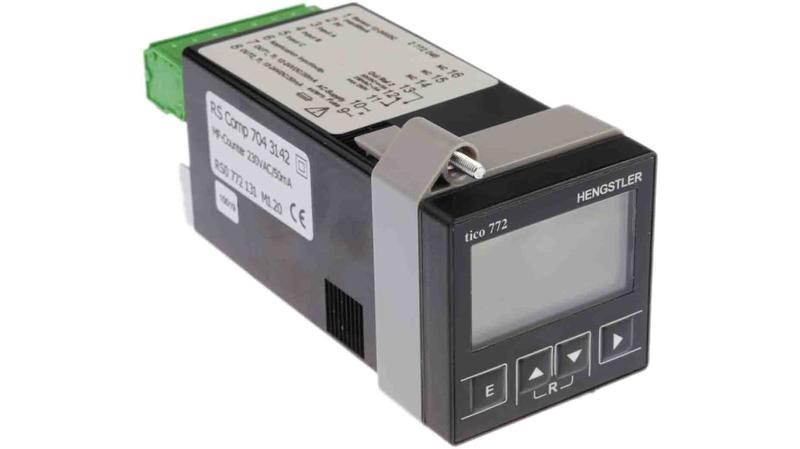

0 772 131 Hengstler TICO 772 Counter, 6 Digit, 60kHz, 230 V ac

Hengstler Counter_x000D_ The Hengstler TICO 772 series digital counter is a three preset multifunctional panel mount counter that includes a tachometer, timer, shift counter and batch counter. It has a 6-digit LCD display and display and preset range of -999,999 to +999,999. This counter has voltage input and relay output. It has a voltage rating of 230VAC. It is easy to program, 4 keys to directly address presets, prescaler and separate totalizer. This counter has a maximum count frequency of 60KHz._x000D_ Note:_x000D_ The highest count frequency of 60KHz can only be reached at a special calibration and parameter, this is otherwise quoted at 30KHz._x000D_ Features and Benefits_x000D_ Easy to operate_x000D_ Maximum count frequency is 60KHz_x000D_ Four different backlight colours_x000D_ Intensity of backlighting can now be adjusted_x000D_ Large, clearly readable_x000D_ Front dimensions is 48mm x 48mm_x000D_ Display and preset ranges between -999999 to 999999_x000D_ Easy installation via plug-in terminals_x000D_ Relay outputs_x000D_ Alarm signal displays flashes when preset 0, 1 or 2 are active_x000D_ Operating temperature ranges between 0°C and 50°C_x000D_ Applications_x000D_ Time controlling_x000D_ Position indication_x000D_ Batch counting_x000D_ Cutting to length_x000D_ Rotation speed controlling_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 61 010-1/IEC 61010-1_x000D_ UL approved_x000D_ CSA certified
