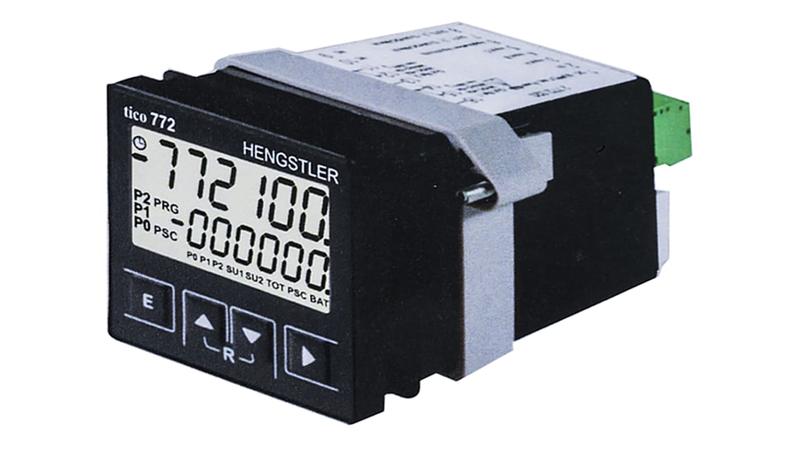

0 772 402 Hengstler TICO 772 Counter, 6 Digit, 60kHz, 12 → 30 V dc

Multifunctional Counter - Tico 773_x000D_ Universally applicable as tachometer, timer, shift-counter and batch-counter._x000D_ • Simplified handling_x000D_ • Separate preset adjustment (signal 1, trail preset, range or limit value)_x000D_ • Versatile and easy to program_x000D_ • 4 keys to address presets, prescaler and separate totaliser_x000D_ • Clearly readable display with large digits_x000D_ • Display and preset range: -999 999 to +999 999_x000D_ • Alarm signal: display flashes when preset 0, 1 or 2 are active_x000D_ • Input frequency up to 60 kHz_x000D_ • Relay outputs: 250 V ac / 30 V dc / 5A_x000D_ • Easy installation due to pluggable terminals_x000D_ • 3 Presets_x000D_ • IP65 protection (front panel)_x000D_ Typical Applications:_x000D_ • Time controlling_x000D_ • Position indication_x000D_ • Batch counting_x000D_ • Cutting to length_x000D_ • Rotation speed controlling_x000D_ Hengstler Panel Mounting 48 x 48_x000D_ Range of resettable counters with data retention rated at greater then 10 years. Prescaler options and Multiplier scaling outputs for correctly displaying engineering units. Units have a maximum count frequency of either 30Hz or 5kHz depending on setting. Inputs are either NPN/PNP signal or contact closure.
