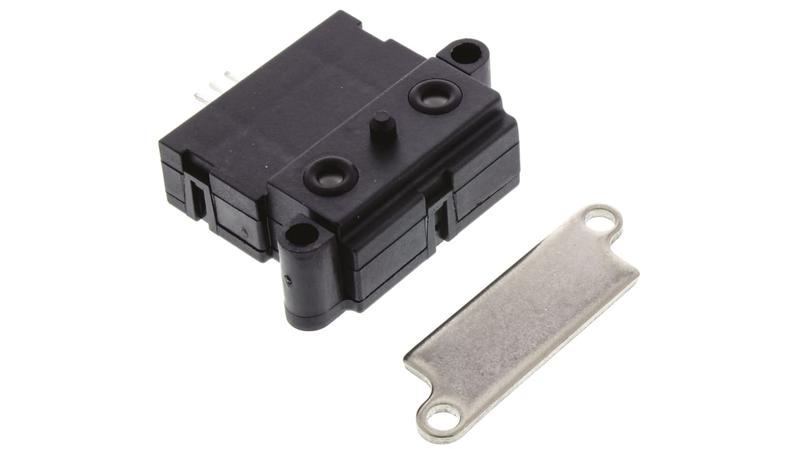

AWM43300V Honeywell Amplified Airflow Sensor, 1000 cm³/s, AWM40000 Series

Amplified Airflow Sensor AWM40000 Series_x000D_ The AWM40000 Series mass flow sensor family is based on proven microbridge technology and includes both amplified signal conditioned devices and unamplified sensor only devices._x000D_ When using the unamplified devices (AWM42150VH and AWM42300V), the heater control circuit and the sensing bridge supply circuit are both required for operation per specification._x000D_ These two circuits are NOT on board the sensor and must be supplied in the application. The differential amplifier circuitry is useful in providing output gain and/or introducing voltage offsets to the sensor output._x000D_ The amplified devices (AWM43300V and AWM43600V) can be used to increase output gain and introduce voltage offsets._x000D_ The differential instrumentation amplifier circuitry, heater control circuitry and sensing bridge supply circuitry are all provided onboard the amplified sensors._x000D_ Features and Benefits_x000D_ • Manifold mount/o-ring sealed_x000D_ • Ceramic flow tube (non-outgassing), 0 to 1000 sccm_x000D_ • High common mode pressure (150 psi ceramic flow tube only)_x000D_ • Operating temperature up to 125°C_x000D_ • High stability at null and full scale_x000D_ Product Application Information_x000D_ • Damper control for heating, ventilation, and air conditioning systems_x000D_ • Gas analysers_x000D_ • Low vacuum control_x000D_ • Process control_x000D_ • Medical respirators and ventilators_x000D_ • Oxygen concentrators_x000D_ • Leak detection equipment_x000D_ • Vent hoods_x000D_ • Anaesthesia control_x000D_ • Gas metering_x000D_ • Gas chromatography
