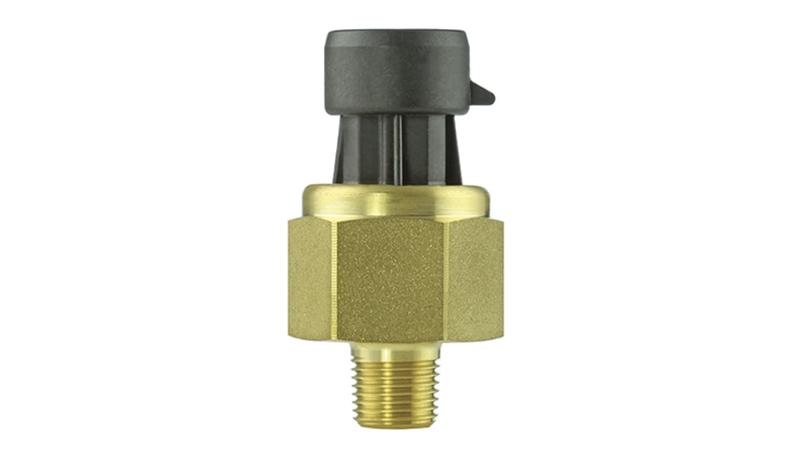

PX3AG1BH046BSAAX Honeywell Pressure Sensor, 0bar Min, 46bar Max, Analogue Output, Relative Reading

Honeywell PX3 Series Pressure Transducer_x000D_ Honeywell PX3 Series heavy duty pressure transducer is a range of highly configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a brass housing. The PX3 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC._x000D_ Pressure range: 1 bar to 46 bar (absolute and sealed gage)_x000D_ Fully calibrated and temperature compensated_x000D_ Total Error Band: ±1.0 %FSS from -20 °C to 85 °C [-4 °F to 185 °F]_x000D_ Insulation resistance: >100 MOhm, 1500 V dc_x000D_ Dielectric strength: AC1500V, 1 min. or AC1800, 1 s_x000D_ Current consumption: 3.5 mA max._x000D_ Ingress protection up to IP67_x000D_ Response time: <2 ms_x000D_ RoHS, REACH, and CE compliant
