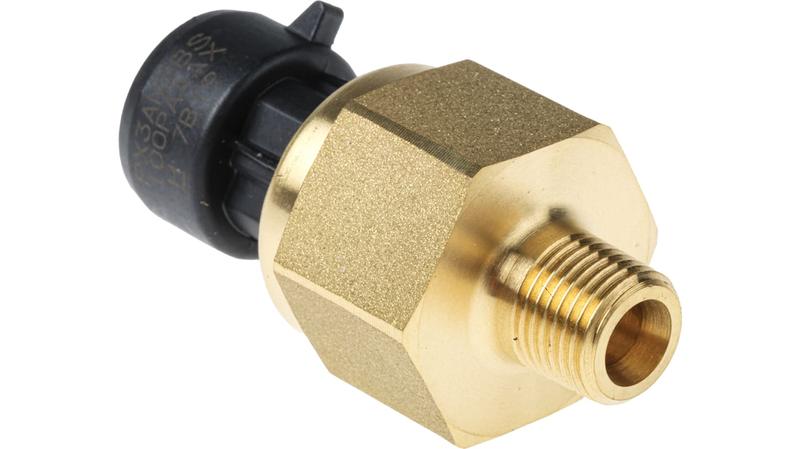

PX3AN2BS100PAAAX Honeywell PX3 Series Pressure Sensor, 0psi Min, 100psi Max, Analogue Output, Absolute Reading

Honeywell PX3 Series Pressure Transducer_x000D_ Honeywell PX3 Series heavy duty pressure transducer is a range of highly configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a brass housing. The PX3 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC._x000D_ Pressure range: 1 bar to 46 bar (absolute and sealed gage)_x000D_ Fully calibrated and temperature compensated_x000D_ Total Error Band: ±1.0 %FSS from -20 °C to 85 °C [-4 °F to 185 °F]_x000D_ Insulation resistance: >100 MOhm, 1500 V dc_x000D_ Dielectric strength: AC1500V, 1 min. or AC1800, 1 s_x000D_ Current consumption: 3.5 mA max._x000D_ Ingress protection up to IP67_x000D_ Response time: <2 ms_x000D_ RoHS, REACH, and CE compliant_x000D_ Honeywell Heavy-Duty Analogue Pressure Sensor, 100psi Maximum Reading, 0.5 to 4.5V Output - PX3 Series - PX3AN2BS100PAAAX_x000D_ Use this heavy-duty pressure sensor from Honeywell when you need accurate readings and a swift response. It uses piezo-resistive sensing technology to cope with fast-changing pressures and has a quick reaction time that's under 2ms (milliseconds). This sensor is precise, with a total error band of ±1% when operating between the temperatures of -20°C and +85°C. As it's frost resistant, the unit is safe to use with HFC (hydrofluorocarbon) refrigerants and works at low temperatures down to -40°C. This means the transducer is ideal for HVAC (heating, ventilation and air conditioning) systems._x000D_ Features & Benefits_x000D_ • IP67 ingress protection rating means it's dust-tight and water-resistant for use in demanding industries_x000D_ • Comes fully calibrated and temperature-compensated to speed up installation_x000D_ • Works with supply voltages between 4.75 and 5.25V DC, so it's useful in a variety of electrical circuits_x000D_ • Corrosion-resistant brass housing makes it durable and long-lasting_x000D_ Applications_x000D_ • Aerospace and transport_x000D_ • Food and agriculture industries_x000D_ • Pharmaceutical and medical applications_x000D_ What fluids can this sensor measure?_x000D_ This sensor is designed to measure a range of liquids, including brake oil and hydraulic fluids. It can also measure refrigerants and air.
