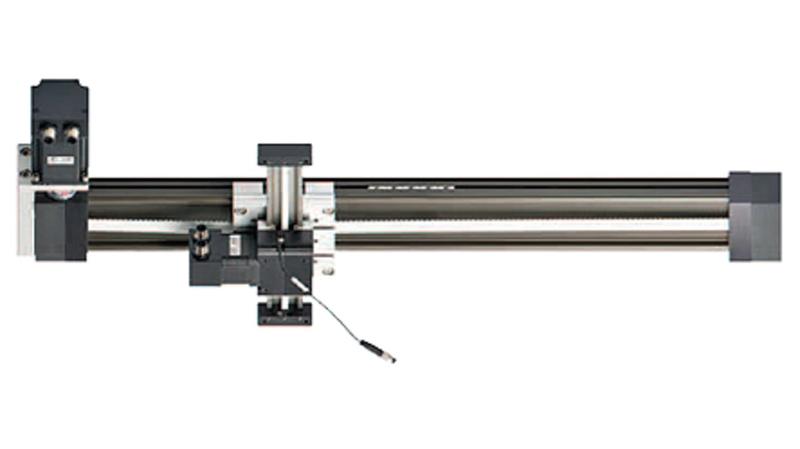

DLE-LG-0001 Igus Linear Robot 2 Axis, 500 x 100mm

Igus Drylin® E Gantries_x000D_ Gantries are a combination of several linear axes designed to implement a multidimensional movement. Automating tasks with the Igus gantry enables lower costs and shorter production times. For the most varied tasks, Igus offers gantries as flat gantry, line, and room gantry. igus®-gantries include pre-configured drylin® linear modules/axes with NEMA stepper motors and all the components necessary for self-manufacturing._x000D_ Features and Benefits_x000D_ • Drive: Toothed belt and toothed rack_x000D_ • Quick assembly_x000D_ • Defined stroke lengths_x000D_ • No external lubrication_x000D_ • Clean, corrosion–free operation_x000D_ Line Gantries_x000D_ The Igus line gantry can be used for loads up to 2.5 kg, precision requirements up to 0.2 mm at speeds up to 1 m/s. They are easy to install and are ideal for pick and place applications, sorting plants and micro electronics._x000D_ Flat Gantries_x000D_ The Igus flat gantry can be used for loads up to 30 kg, precision requirements up to 0.5 mm and speeds up to 1.5 m/s. They are easy to install and are ideal for measurement and testing automation._x000D_ Room Gantries_x000D_ The Igus room gantry can be used for loads up to 2.5 kg, precision requirements up to 0.8 mm and speeds up to 0.5 m/s. They are easy to install and are ideal for easy and small part handling tasks, medical technology and testing automation._x000D_ Igus Robot Gantries
