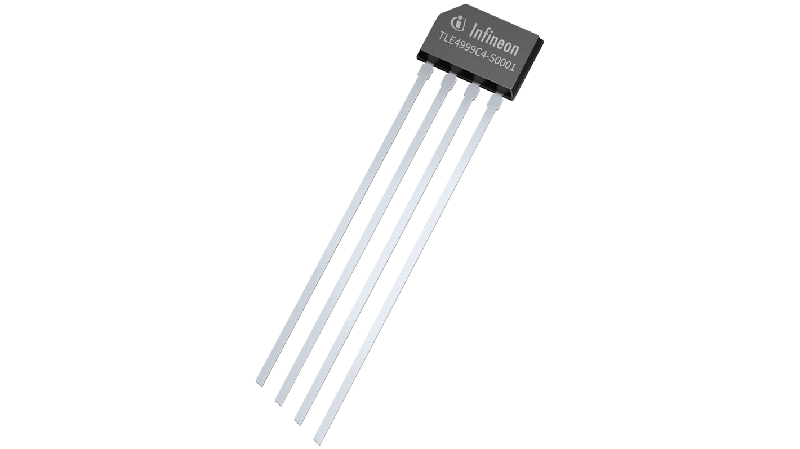

TLE4999C4S0001HALA1 Infineon Hall Effect Sensor, 20 V

The Infineon TLE series is a Dual channel linear Hall sensor with a bus-capable digital Short-PWM-code interface. Both channels are integrated on one die in the chip. The sensor is developed in compliance to ISO 26262. Highest accuracy over a wide temperature range and lifetime is achieved by an integrated digital temperature- and stress-compensation._x000D_ Two highly accurate redundant hall measurement channels integrated on one chip_x000D_ Operating automotive temperature range -40°C to 150°C_x000D_ Digital temperature and stress compensation_x000D_ Reverse-polarity and over voltage protection for VDD, GND and OUT pins_x000D_ Main and sub channel programmable independently in EEPROM_x000D_ Multipoint calibration up to 9 points_x000D_ 2 x 16 bit user-configurable ID in EEPROM_x000D_ Digital temperature and stress compensation_x000D_ Reverse-polarity and over voltage protection for VDD, GND and OUT pins_x000D_ Multipoint calibration up to 9 points
