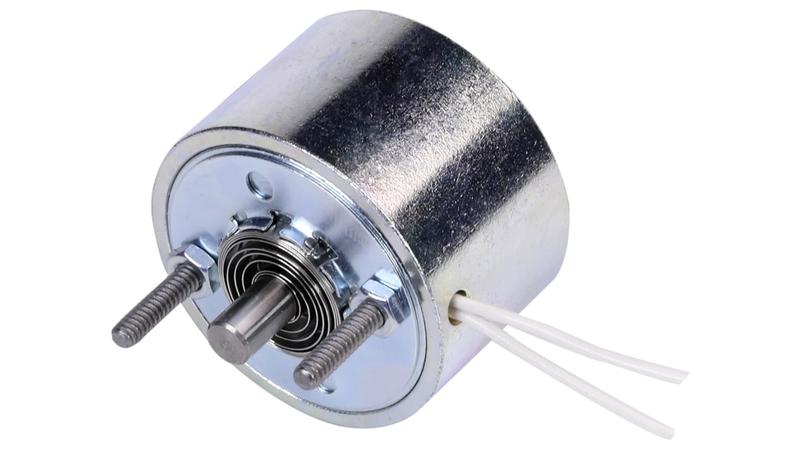

195190-032 Rotary Solenoid, 30.2 mm Diameter, 25%, 40W, 27.8 V dc

Johnson Electric’s BTA actuator platform offers high speed controllability in rotary stroke applications. The BTA has a single phase coil with three stator poles and matching rotor pole. When the coil is energized, the poles align along the flux path. The three pole design allows a stroke of up to 45°. Since BTA technology does not require full stroke actuation, stops can be used to attain maximum life as well as optimum stroke / torque capacity. Using simple pulse width modulation to control coil current, the BTA allows open or closed loop velocity and maximum position control._x000D_ Controllable velocity and position_x000D_ Quiet, shock-free operation_x000D_ 100+ million cycle life_x000D_ No axial stroke_x000D_ Adaptable to closed loop operation_x000D_ Completely enclosed construction_x000D_ Excellent unit-to-unit performance consistency_x000D_ Low power consumption
