709061/8-01-020-001-230-00/252 Jumo Power Controller

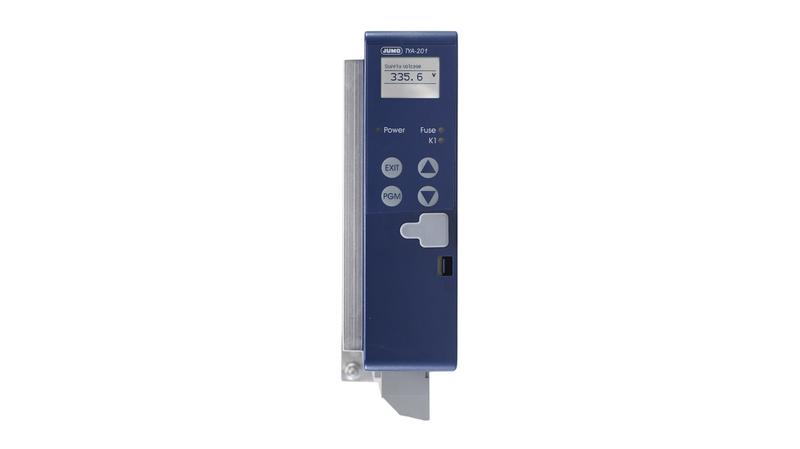

TYA-201 1-Phase Power Controller_x000D_ The micro-processor controlled single-phase power controller Jumo TYA 201 displays all parameters in a backlighted LCD display and is operated using the 4 keys on the front._x000D_ SCR power controllers are employed where larger resistive and inductive loads have to be switched, e.g. in industrial kiln construction and in plastics processing. The SCR power controller comprises two SCRs connected in anti-parallel, the insulated cooling body and the control electronics._x000D_ The operating modes are phase-angle, burst-firing mode, half-wave control, SSR logical operation , fast logical operation, alpha start and soft start._x000D_ Available subordinate controls are U, U2, I, I2 and P control._x000D_ Use of a subordinate control ensures that fluctuations in the supply voltage do not affect the control loop during the control process._x000D_ Single-phase SCR power controller_x000D_ Simple configuration of the device through plain text display_x000D_ Setup program for configuration via USB interface_x000D_ Transmission of the setup data is possible even without voltage supply to the device (USB port supplies power)_x000D_ Network load optimization through dual energy management_x000D_ Generalized phase mode, burst-firing mode, and half-wave control_x000D_ Soft start function_x000D_ Current limiting_x000D_ Resistance monitoring and limitation for MoSi2 heating elements_x000D_ Teach-in function for the detection of partial load failure_x000D_ Integrated diagnostic systems (e.g. rotating field detection)
