709062/8-01-020-100-400-00/252 Jumo Power Controller

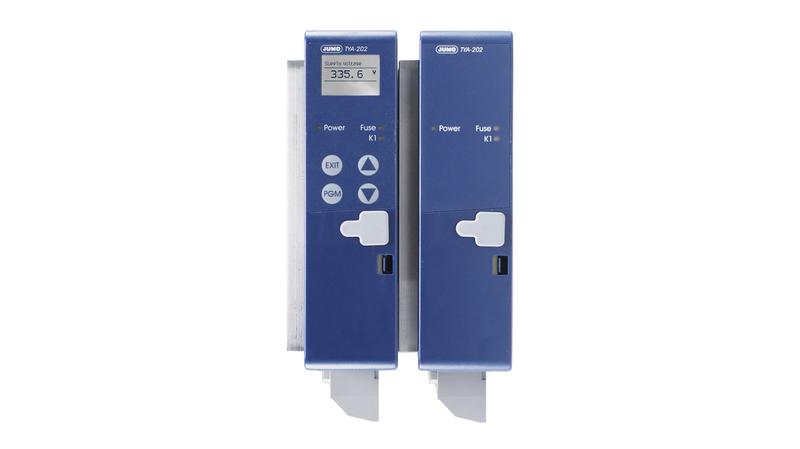

TYA-202 3-Phase Power Controller_x000D_ The micro-processor controlled three-phase power controller Jumo TYA 202 displays all parameters in a backlighted LCD display and is operated using the 4 keys on the front._x000D_ SCR power controllers are employed where larger resistive and ohmic-inductive loads have to be switched, e.g. in industrial kiln construction and in plastics processing. The SCR power controller comprises two SCRs connected in anti-parallel, the insulated cooling body and the control electronics._x000D_ The operating modes are burst-firing mode, SSR logical operation, fast logical operation, alpha start and soft start._x000D_ Available subordinate controls are U, U2, I, I2 and P control._x000D_ Use of a subordinate control ensures that fluctuations in the supply voltage do not affect the control loop during the control process._x000D_ Three-phase SCR power controller_x000D_ Simple configuration of the device through plain text display_x000D_ Setup program for configuration via USB interface_x000D_ Transmission of the setup data is possible even without voltage supply to the device (USB port supplies power)_x000D_ Network load optimization through dual energy management_x000D_ Burst-firing mode_x000D_ Soft start function with pulse groups_x000D_ Resistance monitoring and limitation for MoSi2 heating elements_x000D_ Teach-in function for the detection of partial load failure_x000D_ Integrated diagnostic systems (e.g. rotating field detection)
