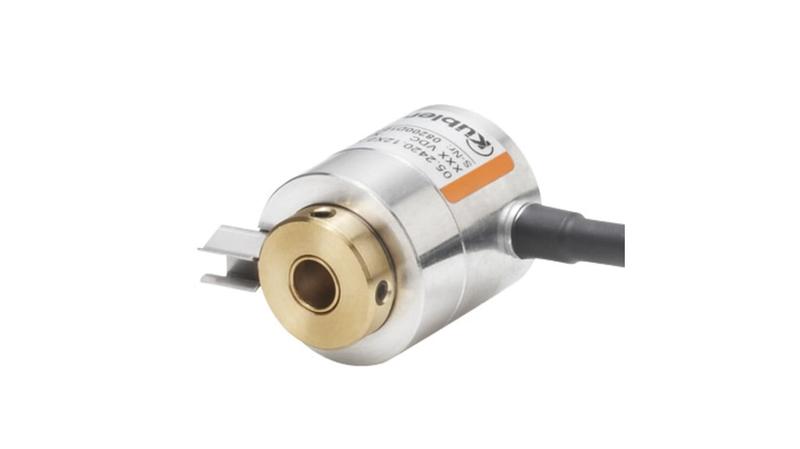

05.2420.1242.1024 Kübler 2420 Series Incremental Encoder, 1024 ppr, Push Pull Signal, Hollow Type, 6mm Shaft

Kubler Incremental Encoder_x000D_ The Kubler incremental encoder has an electrical rating of 8VDC to 30VDC with a current rating 50mA and the switching frequency is 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1024 pulses per revolution. The diameter of this encoder is 24mm is ideal for use where space is tight._x000D_ Features and Benefits_x000D_ • Cable outlet boasts high degree of strain relief thanks to multiple clamping_x000D_ • Ideally suited for use in small devices_x000D_ • Mounting type is flange mount_x000D_ • Operating temperature ranges between -20°C and 85°C_x000D_ • Output signal type is push-pull_x000D_ • Robust bearing construction_x000D_ • Shaft type is hollow_x000D_ • Short-circuit proof outputs_x000D_ Applications_x000D_ • Monitoring or controlling motion parameters such as speed, rate, direction, distance or position_x000D_ Certifications_x000D_ • IP50 rated_x000D_ • IP64 rated_x000D_ • IP65 rated
