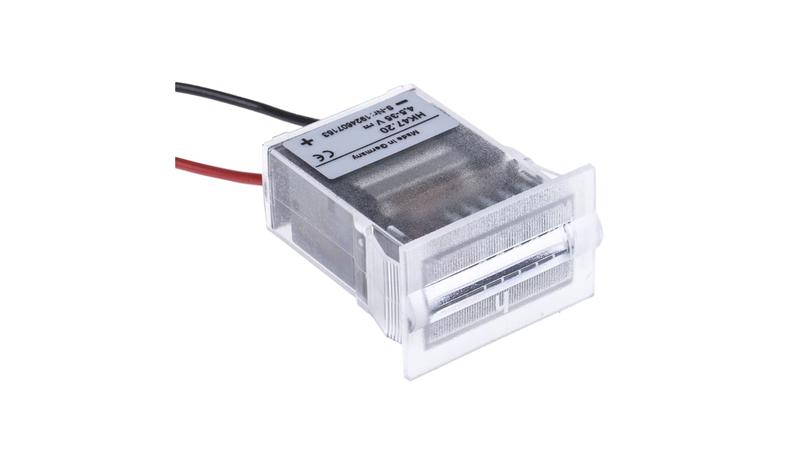

3.060.200.383 Kübler HK 47.20 Counter, 7 Digit, 4.5 → 35 V dc

Kubler Hour Counter_x000D_ The Kubler HK 47.20 series micro hour counter is a 7-digit panel mount meter with a wire lead connection and has an integrated spring clip. It has a supply voltage rating ranging between 4.5VDC and 35VDC. This device is pulse-driven, precision crystal controller via an electronic divider circuit. This non-resettable counter is robust and extremely tamper-proof._x000D_ Features and Benefits_x000D_ Low cost_x000D_ High shock resistance_x000D_ Magnified large figures_x000D_ Wire lead connection_x000D_ Solderable and wash-proof_x000D_ Data retention in case of power failure_x000D_ Long service life_x000D_ Low power consumption_x000D_ Cut-out dimensions are 27mm x 14mm_x000D_ Measurement range is between 0 and 99999.99_x000D_ Operation temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ Instruments (respiration units, oxygen, dialysis)_x000D_ Small appliances_x000D_ UV lamps_x000D_ Display panels_x000D_ Time registration_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2
