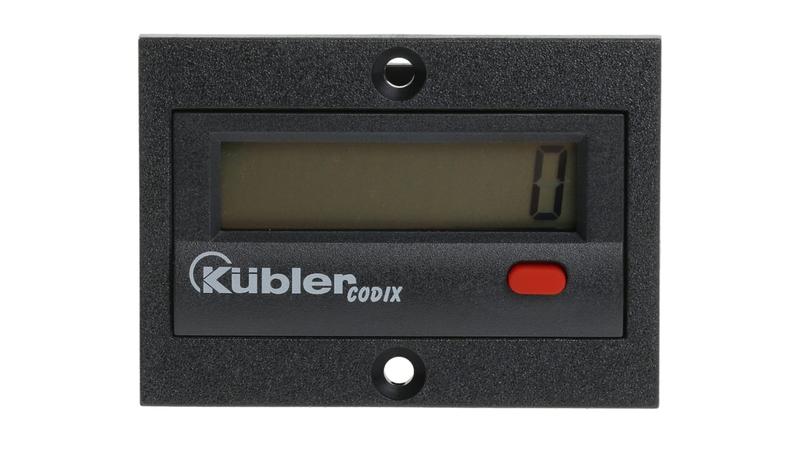

6.130.012.850 Kubler CODIX 130 Counter, 8 Digit, 7kHz, 3.6 V Battery

Kubler Counter_x000D_ The Kubler CODIX 130 series digital counter is a battery-powered pulse counter for fast and slow count pulses. It has an 8-digit LCD display and without backlighting for NPN and high voltage application range between 0VDC and 0.7VDC. It supports various counting modes like easy, up/down, differential and phase-clock even with pulse doubling for connection to incremental encoders. This counter has a maximum count frequency of 7kHz and operates on 3.6VDC battery._x000D_ Features and Benefits_x000D_ Count direction adding and subtracting via control input_x000D_ Very good readability due to leading zero blanking_x000D_ Bi-directional counting_x000D_ Easy and safe connection due to screw terminals_x000D_ Reset key lockable via the input ’Reset Enable’_x000D_ Easy to use_x000D_ no programming required_x000D_ For positive and negative counting edges, depending on the version_x000D_ Panel cut out dimensions are 22.2mm x 45mm_x000D_ Easy and safe connection due to screw terminals_x000D_ Operating temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2
