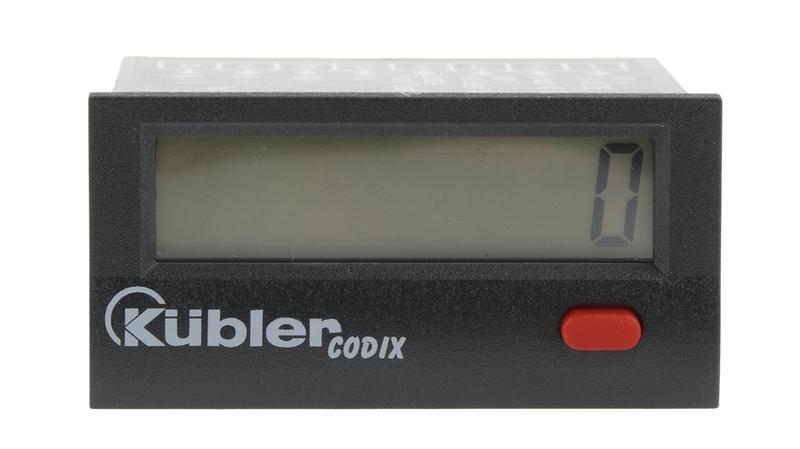

6.130.012.853 Kubler CODIX 130 Counter, 8 Digit, 30Hz

Display Counter, Codix 130 series_x000D_ 8 digit LCD counter for applications without power supply (battery powered)_x000D_ Very good readability due to leading zero blanking and 8mm digit height_x000D_ Slow count input e.g. for mechanical contacts_x000D_ Fast count input up to 30kHz_x000D_ Easy and safe connection due to screw terminals_x000D_ Solution for any counting task-counting mode - NPN, PNP, ac, fast, slow counting_x000D_ Bezels for screw mounting included_x000D_ Easy to use; no programming required_x000D_ Panel cut-out: 22.2mm x 45mm_x000D_ Operating temperature: -10 → +60°C_x000D_ IP65 Rated_x000D_ Kubler Counter_x000D_ The Kubler CODIX 130 series digital counter is a battery-powered pulse counter for fast and slow count pulses. It has an 8-digit LCD display and without backlighting for NPN and high voltage application range between 10VDC/AC and 260VDC/AC. It supports various counting modes like easy, up/down, differential and phase-clock even with pulse doubling for connection to incremental encoders. This counter has a maximum count frequency of 30Hz._x000D_ Features and Benefits_x000D_ Count direction adding and subtracting via control input_x000D_ The filter function for bounce-free counting with mechanical contacts_x000D_ Bi-directional counting_x000D_ Easy and safe connection due to screw terminals_x000D_ Reset key lockable via the input ’Reset Enable’_x000D_ For positive and negative counting edges, depending on the version_x000D_ Panel cut out dimensions are 22.2mm x 45mm_x000D_ Operating temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2_x000D_ Kubler Panel Mounting 24x48
