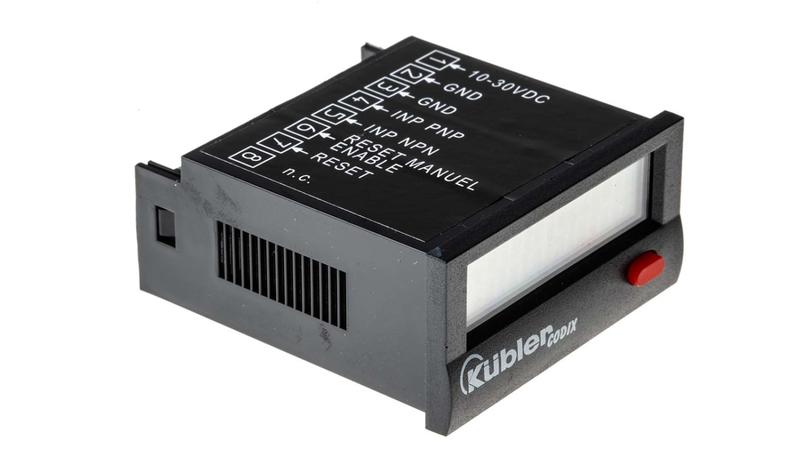

6.140.012.300 Kübler CODIX 140 Counter, 7 Digit, 8kHz, 10 → 30 V dc

Kubler Counter_x000D_ The Kubler CODIX 140 series digital counter is a 7-digit LCD display designed for NPN/PNP input signal panel mount pulse counter. It has a supply voltage rating ranging between 10VDC and 30VDC. It has a multifunction reset key, lockable via a separate input. This counter has a maximum count frequency of 8KHz._x000D_ Features and Benefits_x000D_ Direct display of the total number of pulses_x000D_ Key press displays preset service value and its pre-signal_x000D_ Preset value output as display text and transistor output_x000D_ Pre-signal for the service intervals as display text_x000D_ Manual or electrical reset of the display or of the service intervals_x000D_ Fast PNP or damped NPN control via separate inputs_x000D_ Counting range is between 0 to 9999999, no decimal point_x000D_ Front dimensions is 48mm x 24mm_x000D_ Plug-in screw terminals_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2
