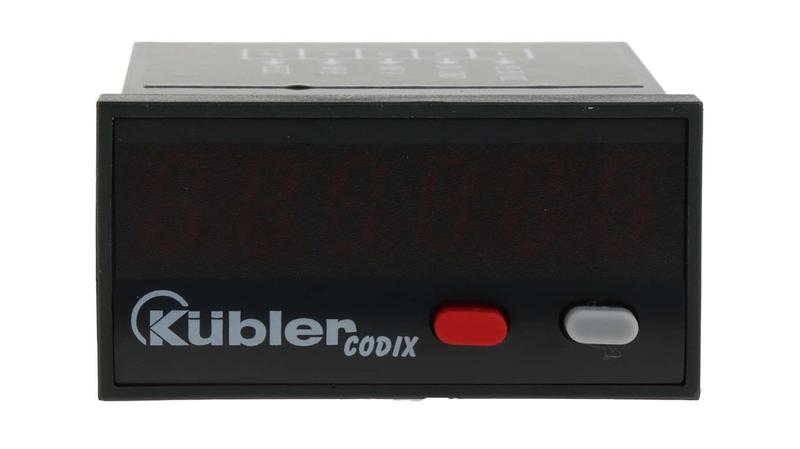

6.521.012.300 Kübler CODIX 521 Counter, 6 Digit, 60kHz, 10 → 30 V dc

Kubler Counter_x000D_ The Kubler CODIX 522 series digital counter is a simple voltage is a powered panel mount frequency display tachometer. This counter displays in 1/min or 1/sec, freely scalable, for fast and slow count pulses, with 6-digit LED display for NPN, PNP input signals, with a fast HRA measurement system (High Rate Accuracy). The voltage rating range between 10VDC and 30VDC. This counter has a maximum count frequency of 60KHz._x000D_ Features and Benefits_x000D_ The large, ergonomic buttons allow easy operation_x000D_ Decimal point selectable_x000D_ All set-up parameters are programmable via two front keys_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Rotary speed applications_x000D_ OEM equipment for flow rate measuring_x000D_ Speed applications on motors, turbines and machines_x000D_ feed-rate measurement_x000D_ Recording of production rates_x000D_ Frequency measurement_x000D_ Certifications_x000D_ EN 55011 class B_x000D_ EN 61000-6-2_x000D_ IP65 rated
