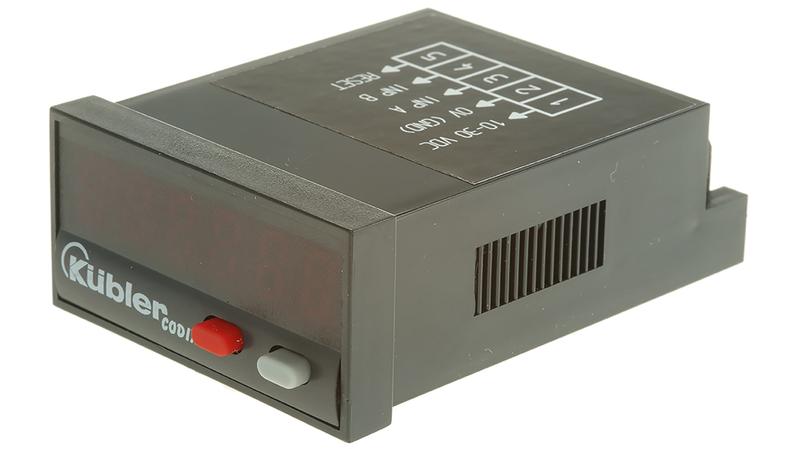

6.523.012.300 Kübler CODIX 523 Counter, 6 Digit, 10 → 30 V dc

Kubler Digital Hour Meter_x000D_ The Kubler CODIX 135 series hour meter is a 6-digit LED display, panel-mount counter with screw connection. This is a simple, externally powered, the programmable meter. The counter is operated at voltage rating ranges between 10VDC and 30VDC. The LED display shows the NPN, PNP input signals used for pulse width or time interval measurement. It has an individually adjustable start/ stop function._x000D_ Features and Benefits_x000D_ Totalizer with digital inputs NPN/PNP up to 60kHz_x000D_ Decimal point selectable_x000D_ Set up parameters programmable using two front keys_x000D_ Manual or electrical reset_x000D_ Optional output is 1Hz clock pulse in case of active time measurement_x000D_ Panel cut-out dimensions are 22.2mm x 45mm_x000D_ Measurement range is between 0 and 99999.99_x000D_ Operation temperature ranges between -20°C and 55°C_x000D_ Applications_x000D_ Compressors, solariums, special lights, and lamps_x000D_ Accessories, OEM equipment or retrofitting to the production machine_x000D_ Time recording (stopwatch function) at sporting events_x000D_ Certifications_x000D_ IP65 rated
