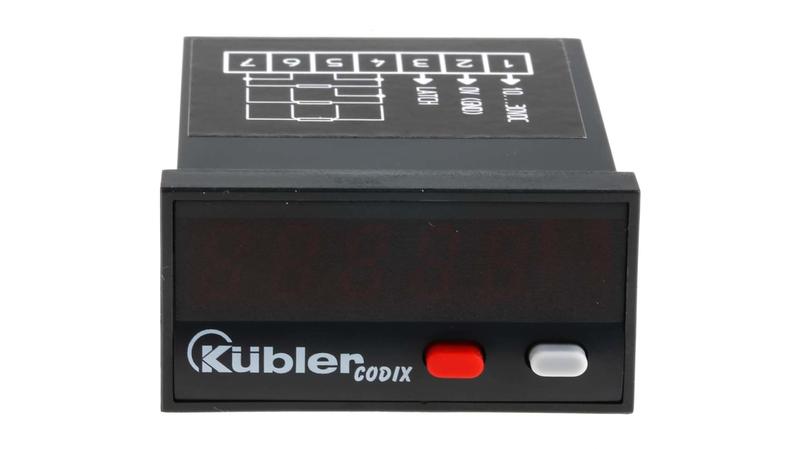

6.531.012.300 Kübler CODIX 531 Temperature Indicator, 48 x 24 (1/32 DIN)mm, 10 → 30 V dc Supply Voltage

Kubler Temperature Indicator_x000D_ The Kubler CODIX 531 series temperature indicator has a supply voltage rating ranging from 10VDC to 30VDC. This controller has a width of 48mm and a height of 24mm. This indicator is the latest invention with Pt100 and Ni100 resistance thermometer. This 1/32 DIN indicator has a compact and a low-price temperature display, modern industrial design, along with easy programming and operation._x000D_ Features and Benefits_x000D_ Temperature display in °C or °F_x000D_ Minimum and maximum value detection for temperature monitoring over long periods of time_x000D_ Galvanic isolation with protection against incorrect polarity_x000D_ Screw terminal connection is pitch 5mm_x000D_ Display hold input_x000D_ 5 measurements per second (display refresh 1 to 2 times per second)_x000D_ Current consumption is maximum 40mA_x000D_ Decimal point selectable_x000D_ Reverse polarity protection_x000D_ Resolution is 0.01°C (0.1°F) or 1°C (1°F)_x000D_ Accuracy is PT100 0.1%, Ni100 0.2%_x000D_ Temperature drift is 0.01K/K ambient_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Built-in depth is 59mm_x000D_ Display range is from 19 999 to 99.999_x000D_ 14bit resolution_x000D_ Applications_x000D_ Heater_x000D_ Fan_x000D_ Certifications_x000D_ CE certified_x000D_ IP65 rated (front side)_x000D_ EN 55011 class B (emitted interference)_x000D_ EN 61000-6-2 (immunity to interference)
