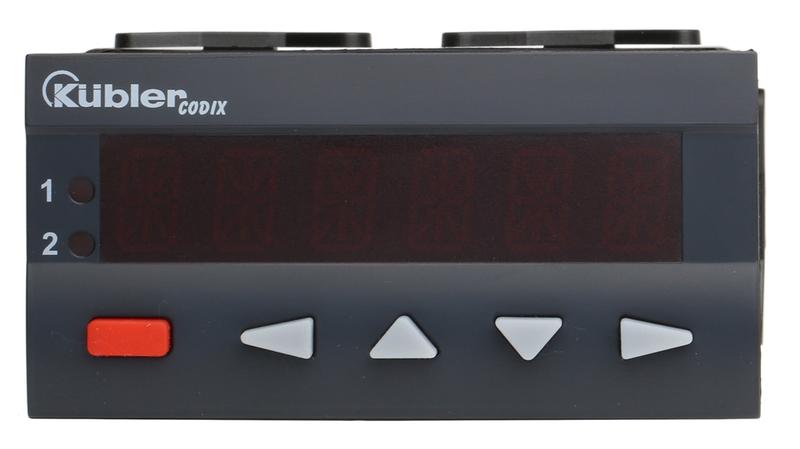

6.560.010.000 Kübler CODIX 560 Counter, 6 Digit, 65kHz, 90 → 260 V ac

Kubler Digital Counter_x000D_ The Kubler CODIX 560 series digital counter is a 6-digit, dual preset, LED display, multifunction counter as a tachometer, timer and position display all-in-one device. It has a voltage rating ranges between 90VAC and 260VAC. The 14 LED segments ensure easy reading even from a long distance and in poor lighting conditions. The large user-friendly front keys can be operated even when wearing gloves. This product can be used as a preset counter, batch counter or totalizer with up to 6 presets. It can solve a wide variety of control and monitoring tasks in every application. This counter has a maximum count frequency of 60KHz._x000D_ Features and Benefits_x000D_ Scalable display and set value_x000D_ Front Dimensions 96mm x 48mm_x000D_ Tracking presets eliminate the need for reprogramming of the pre-signal_x000D_ Status display of the presets_x000D_ 3 predefined parameters_x000D_ 4-stage RESET modes and 3-stage keypad locking_x000D_ Suitable for installation in mosaic systems_x000D_ Many different count modes_x000D_ Flying lead connection type_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated_x000D_ EN 55011 class B_x000D_ EN 61000-6-2
