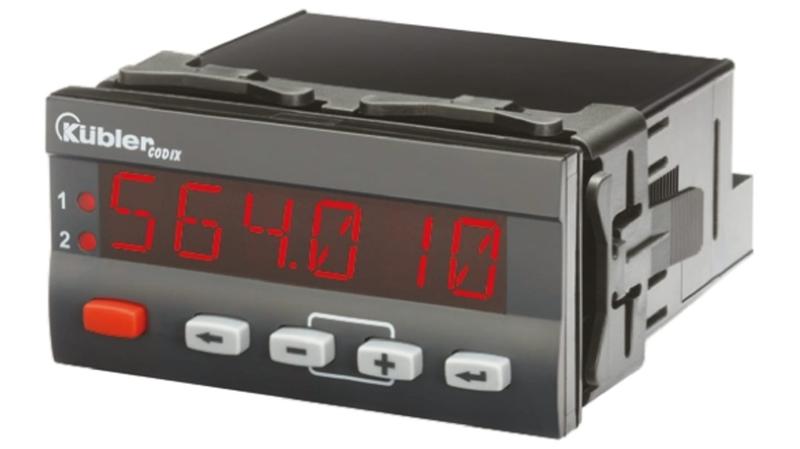

6.564.010.300 Kübler CODIX 564 On/Off Temperature Controller, 96 x 48mm, 10 → 30 V dc Supply Voltage

Codix 564 - Temperature Controller_x000D_ The temperature controller Codix 564 displays temperature values in high resolution. In addition it can monitor and control 2 limit values. All current temperature sensors, such as thermocouple, as well as mV inputs, Pt100 and resistance inputs, can be connected to the device._x000D_ These fast displays set new standards when it comes to user friendliness. Their easy-to-read 14-segment LED display, easy-to-understand running help texts and a practical quick-start guide eliminate the need to wade through time-consuming full instruction manuals._x000D_ 6-digit display, 14-segment LED, 14 mm high_x000D_ Simple programming via 4 keys on the front_x000D_ One front key as well as 2 additional inputs can be programmed for specific applications_x000D_ Sampling rate of 10 readings per second_x000D_ MIN/MAX memory function, individually resettable_x000D_ Digital filter (first-order) for smoothing display fluctuations with unstable input signals_x000D_ Customised linearization via 12 control points_x000D_ 2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function_x000D_ Auxiliary sensor power supply with AC version_x000D_ Inputs and outputs galvanically isolated_x000D_ Kubler Controller
