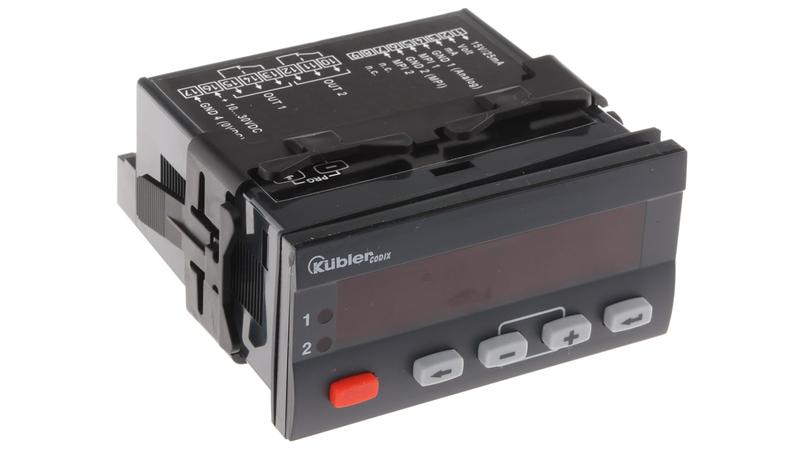

6.565.010.300 Kubler CODIX 565 LED Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm

Codix 565 - Temperature Controller_x000D_ The process controller Codix 565 with totaliser function displays V and mA analogue input signals in high resolution. In addition it can monitor and control 2 limit values._x000D_ These fast displays set new standards when it comes to user friendliness. Their easy-to-read 14-segment LED display, easy-to- understand running help texts and a practical quick-start guide eliminate the need to wade through time-consuming full instruction manuals._x000D_ 6-digit display, 14-segment LED, 14 mm high_x000D_ Simple programming via 4 keys on the front_x000D_ One front key as well as 2 additional inputs can be programmed for specific applications_x000D_ Sampling rate of 10 readings per second_x000D_ Time-controlled totaliser function for totalising the measured values. Can be reset separately_x000D_ MIN/MAX memory function, individually resettable_x000D_ Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs_x000D_ 2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current measured or totaliser values_x000D_ Inputs and outputs galvanically isolated_x000D_ Digital filter (first-order) for smoothing display fluctuations with unstable input signals_x000D_ Wide range of supply voltage 10 → 30 Vdc/90 → 260 Vac_x000D_ Wide input range: 0/4-20mA, 0/2-10 Vdc, +/-10V_x000D_ Kubler Process Controller_x000D_ The Kubler process controller is enabled with a totaliser function that displays voltage and current analogue input signals in high resolution. Also, it can monitor and control 2 limit values. It has an easy-to-read, 6-digit 14-segment, LED display_x000D_ easy-to-understand running help texts_x000D_ and a practical quick-start guide that efficiently replaces time-consuming, full instruction manuals._x000D_ Features and Benefits_x000D_ Simple programming via 4 keys on the front_x000D_ Sampling rate of 10 readings per second_x000D_ Power supply voltage rating is 10VDC to 30VDC_x000D_ 1 front key, as well as 2 additional inputs can be programmed for specific applications_x000D_ Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs_x000D_ Minimum/maximum memory function, individually resettable_x000D_ 2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current_x000D_ Display range is -199999 to 999999, with leading zero blanking_x000D_ Inputs and outputs are galvanically isolated_x000D_ Digital filter (first-order) for smoothing display fluctuation with unstable input signals_x000D_ Tare function_x000D_ Cut-out height of 45mm and width of 92mm and depth of 90.5mm_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ cRUus certified_x000D_ Kubler Controller
