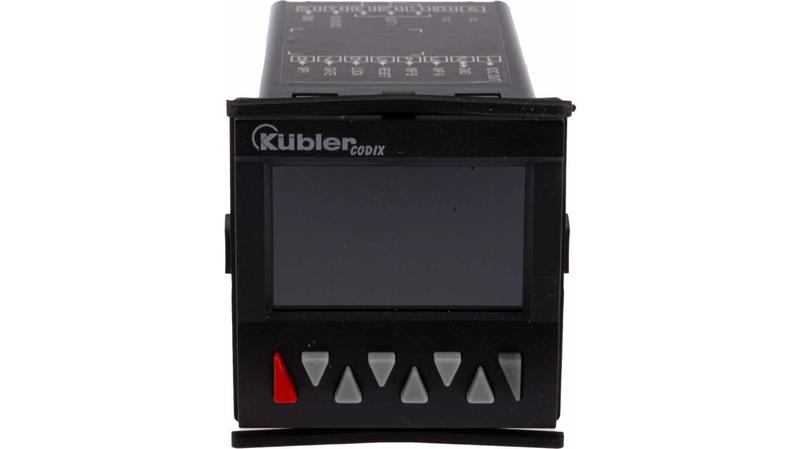

6.923.0103.300 Kübler CODIX 923 Counter, 6 Digit, 65kHz, 10 → 30 V dc

Kubler Digital Counter_x000D_ The Kubler CODIX 923 series digital counter is a 6-digit multifunction, multicolour LCD display and single preset and panel mount device. It has voltage rating ranges between 10VDC and 30VDC. This counter has voltage input and relay output. With its 2-line display in 4 different versions, this counter is very easy to read and simple to program using the clearly laid out decade keys. Complex control tasks can be carried out using a batch count or total count function. It can be used as a preset counter, batch counter or totalizer. This counter has a maximum count frequency of 65KHz._x000D_ Kubler panel mounting 48mm x 48mm - electronic counters_x000D_ Range of resettable counters/timers/rate meters has 45mm x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention is greater than 10 years._x000D_ Features and Benefits_x000D_ Direct input of preset via the front keys_x000D_ 3 predefined settings for the most common parameter settings_x000D_ Tracking presets eliminate the need for reprogramming of the pre-signal_x000D_ 4 stage RESET modes and 3 stages of key lockout_x000D_ Step or tracking presets (eliminates the need for reprogramming of the pre-signal)_x000D_ Plug-in screw terminals_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated
