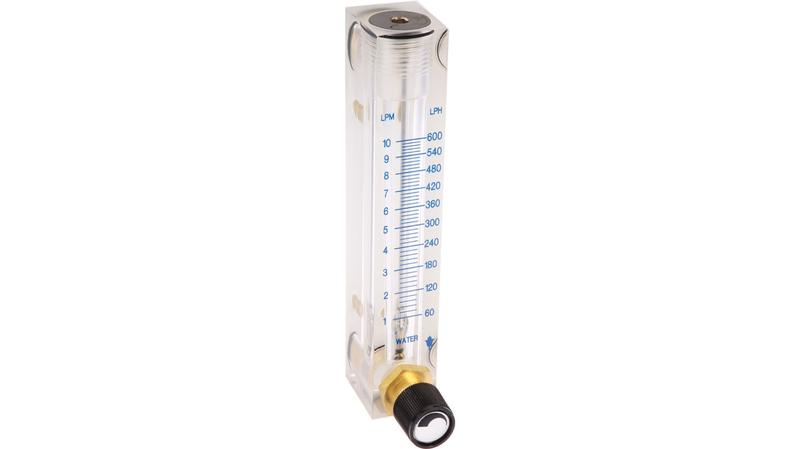

2530A4L69BVBN Key Instruments FR4500 Series Variable Area Flow Meter for Liquid, 0.8 L/min Min, 9 L/min Max

Key Instruments Flowmeter_x000D_ The Key Instruments FR4500 series variable area flowmeter measures the liquid flow rate of 0.8L/min to 10L/min. It is a standard, precision-machined, acrylic, flowmeter for liquids or gases. It also has direct reading air and water scales. The FR4500 flowmeters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N._x000D_ Product application information:_x000D_ Compatible with most gases and fluids._x000D_ Note:_x000D_ Mounting screws are required (available separately)._x000D_ Features and Benefits_x000D_ Pipe diameter range is 1/4 in_x000D_ Connection type is 1/4 NPT female_x000D_ Maximum operating pressure is 6.89bar_x000D_ Maximum operating temperature is 65°C_x000D_ It is use for long term trouble free operation_x000D_ Easy-to-read scales_x000D_ Threaded brass inserts for quick installation_x000D_ Easy disassembly and assembly for maintenance_x000D_ Durable, 1-piece, clear, acrylic construction_x000D_ Stable, easy-to-read float_x000D_ Superior quality_x000D_ Mounting inserts 10-32 UNF x 3/8in_x000D_ It has maximum pressure 100PSIG_x000D_ Applications_x000D_ Air sampling equipment aquaculture_x000D_ Desalinization equipment_x000D_ Gas analysers_x000D_ Medical systems_x000D_ Photo processing equipment_x000D_ Water treatment and distribution systems
