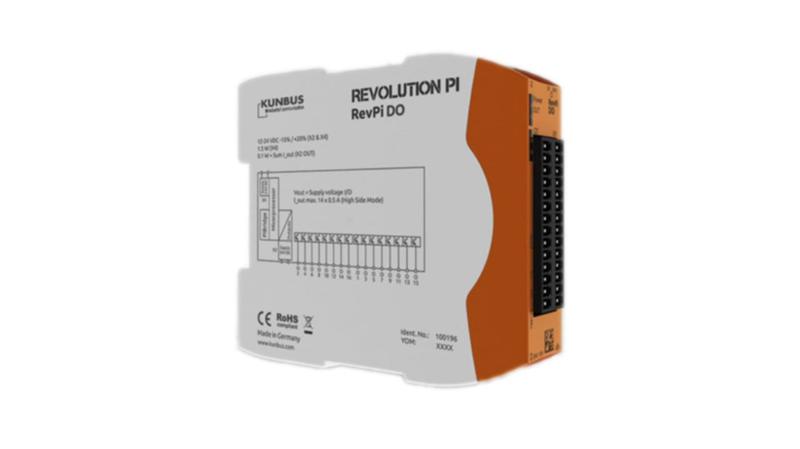

PR100196 Kunbus PLC I/O Module for use with Revolution Pi Connect, Revolution Pi Core, 96 x 22.5 x 110.5 mm, Digital, PWM, RevPI

Revolution Pi DO - Powered by Raspberry Pi_x000D_ The Revolution Pi DO (Digital Output) allows you to transform your base RevPi Core unit into an industrial controller. To do this, you can connect numerous digital I/O modules to it._x000D_ The RevPi DO unit is a specialist digital output only version which features 16 digital outputs. The RevPI DO is protected to EN61131-2 standards against interference and will operate between temperatures of -40°C to +55°C._x000D_ Features and benefits_x000D_ • DIN rail mountable (to EN 50022) & compact in size making it perfect to mount several where space restrictions may apply._x000D_ • Polycarbonate housing material prescribed to standard EN 61131-3 (resistance to vibration/shock/damp air/high&low temperatures)_x000D_ • IP20 rated (effective sealing resistant to foreign bodies such as dirt/dust)_x000D_ • Built-in reverse polarity & overload protection to protect you and your surroundings in case of a fault._x000D_ • Compatible with all RevPi base modules, expansion modules & RevPi Gate modules_x000D_ • DC inputs with a voltage threshold for an industry standard 24 V power supply which is compliant to EN61131-2._x000D_ • Low-pass filtering which helps prevent input signal bouncing._x000D_ • Outputs not only come through digital signal but also a pulse-width modulated PWM signal_x000D_ Applications_x000D_ • Automotive sector_x000D_ • Energy sector_x000D_ • Lighting sector_x000D_ • Home automation_x000D_ With this digital output module, the RevPi Core can be expanded by 16 digital outputs, thus creating the prerequisite for a small industrial controller. The expansion module is connected to the RevPi core via the top connector. The connector is included in the scope of delivery of this expansion module.
