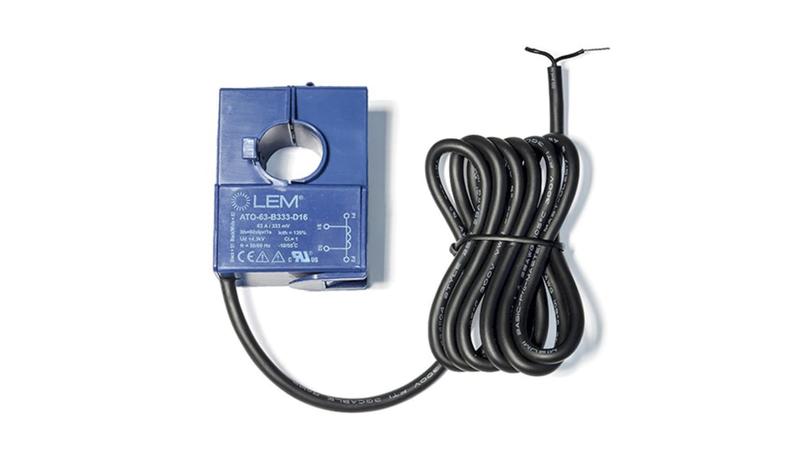

ATO-50-B333-D10 LEM ATO Series Split Core Current Transformer, 50A Input, 50:1, 10mm Bore

LEM Transformer_x000D_ The LEM transformer is a split core current transformer with quick, non intrusive and easy setup with no interruption of electricity during installation on insulated conductors. ATO series is ideal for the electronic measurement of AC waveform current with galvanic separation between the primary circuit (power) and the secondary circuit (measurement). ATO series is an ideal current transformer for new smart grid applications._x000D_ Features and Benefits_x000D_ • 16mm sensing aperture_x000D_ • 1m output cable_x000D_ • Accuracy class 1_x000D_ • DIN rail adapter (optional)_x000D_ • Frequency bandwidth 1.5kHz_x000D_ • Low cost solution_x000D_ • No interruption of electricity during installation on insulated conductors_x000D_ • provides a calibrated output_x000D_ • Rated primary current: 10A -15A -16A -20A -30A -32A -50A -60A -63A -75A_x000D_ • Service temperature ranges between -10°C and 55°C_x000D_ • Slot for attaching the C. T. On the primary with plastic tie_x000D_ • Voltage output 333 mV at IPr_x000D_ Applications_x000D_ • Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation_x000D_ • Condition monitoring (e. G. Motor loads such as conveyers and pumps)_x000D_ • Distributed measurement systems_x000D_ • Hybrid inverter (Home Energy Storage)_x000D_ • Power metering: current measurement for active power calculation_x000D_ • Power quality monitoring: electrical loads and distribution system equipment_x000D_ Certifications_x000D_ • UL 508
