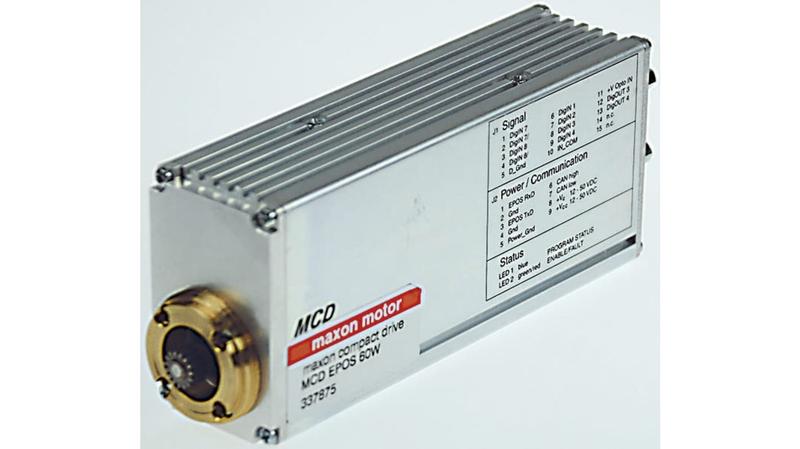

343016 Maxon Brushless, 60 W, 12 → 50 V, 5.4 Ncm, 12000 rpm

MCD EPOS 60 Compact Motor Drive. incl. CAN Slave_x000D_ The Maxon MCD EPOS 60 W is a small-sized compact drive. It contains a brushless EC motor with Hall sensors and digital encoder. The optimized commutation by space vector control offers to drive the integrated brushless EC motor with minimal torque ripple and low noise. Also available with the front end of the drive incoporating an adapter plate and pinion to suit the maxon GP32 mm planetary gearheads.,The integrated position-velocity-and-current control functionality allows sophisticated positioning applications.,The MCD EPOS P 60 W programming languages are according to IEC 61131-3 standard.,In addition the unit can be operated through any RS-232 communication port._x000D_ Point-to-point control unit_x000D_ CAN open interface_x000D_ 6 digital inputs/2 digital outputs_x000D_ 2 analogue inputs_x000D_ Modular design_x000D_ IEC 61131-3 programmable_x000D_ Dimensions: 120 x 33 x 53mm_x000D_ Maxon EPOS
