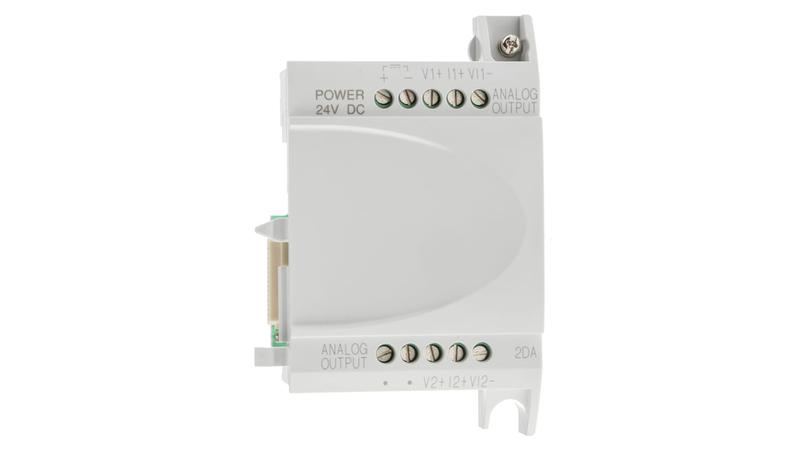

AL2-2DA Mitsubishi Logic Module for use with Alpha 2 Series, 53.1 x 90 x 24.5 mm, Analogue, Digital, Analogue, 24 V dc

Process module Alpha XL_x000D_ ALPHA-XL ALPHA power in large format_x000D_ The new ALPHA XL comes into its own where the existing ALPHA series has reached its limits. Expanded through outstanding new features, it is particularly suited to machine and instrument manufacturing as well as building automation._x000D_ Upgradable with expansion modules_x000D_ Extra large backlit LCD display_x000D_ Triples the ALPHA program capacity to a total of 200 function blocks_x000D_ 15 new user-specific function blocks_x000D_ New display capabilities with integrated MMI functionality_x000D_ Periphery connection via RS232C_x000D_ Marked expansion of the working temperature range_x000D_ Extensive timer functions_x000D_ Proven 3-in-1 software for programming, simulation and visualisation_x000D_ Flexibility via 8 integrated analogue inputs and expansion I/O_x000D_ Four different basic devices can be expanded by 5 I/O expansion adapters to up to 28 I/Os. Four digital 24V DC inputs with two integrated 1KHz counters, 4 digital 240V AC/DC inputs, 4 relay, 4 transistor and 2 analogue outputs_x000D_ Expanded communication options_x000D_ The second communication interface enables communication with other automation components. In addition to remote maintenance via modem, it is now also possible to send SMS  messages to a mobile phone, e-mails to a PC and even faxes_x000D_ ALPHA accessories_x000D_ Input expansion modules_x000D_ - 4 digital inputs with modules AL2-4EX (24V) and AL2-4EX-A2 (230VAC)_x000D_ Output expansion module_x000D_ - 4 digital outputs with modules AL2-4EYR (RELAY) and AL2-4EYT (transistor)_x000D_ - 2 analogue outputs with module AL2-2DA for current (0-20mA) and voltage (0-10V)_x000D_ Temperature input module_x000D_ - 2 Pt100 inputs (-50°C to +200°C, 3-core), output 0 to 10V with module AL2-2PT-ADP_x000D_ - 2 type K inputs (-50°C to +450°C), output 0 to 10V with module AL2-2TC-ADP_x000D_ ASI Slave expansion module_x000D_ - Link to an ASi network with module AL2-ASI-BD_x000D_ EEPROM module AL2-EEPROM-2_x000D_ - The EEPROM module stores and transmits programs_x000D_ Programming cable AL-232 CAB_x000D_ - Programming cable for connecting PC (RS 232) to ALPHA/ALPHA-XL, stock no. 442-0717_x000D_ Communication cable AL2-GSM-CAB_x000D_ - Communication cable for connection between ALPHA-XL and a GSM modem, a PC or other peripheral components_x000D_ Programming software AL-PCS/WIN-EU_x000D_ - Windows software can be used to program ALPHA and ALPHA-XL via a PC. The software includes a 5-language online help feature (D/GB/F/I/E)_x000D_ Power pack ALPHA POWER 24-1.5_x000D_ - Voltage supply for 100 to 240V AC, output 24V DC, 1.5A_x000D_ Mitsubishi Alpha_x000D_ The ALPHA has been designed to fill the void between such items as timers, relay modules that can handle simple tasks, and PLCs which are capable of handling complex operations. In many applications relating to security, building management or low level automation, such a device is required. In these circumstances all that is needed is a supervisory device which is adaptable and flexible to handle a wide range of tasks; the ALPHA has been designed to fulfil these needs. The programming of Alpha has been designed to be simple, without the need to have an in depth knowledge of equipment programming, and to make it easy to use.
