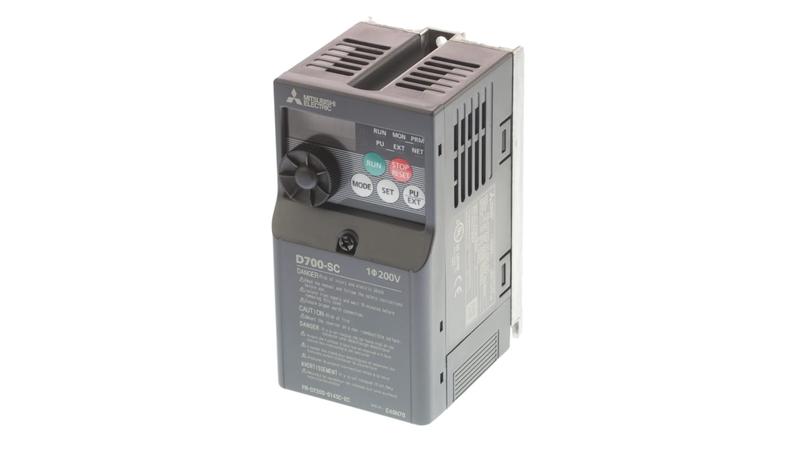

FR-D720S-014SC-EC Mitsubishi Inverter Drive, 0.2 kW, 1 Phase, 230 V ac, 1.4 A, FR-D720S Series

D720-SC Single Phase Frequency Inverters_x000D_ What is the D720-SC range?_x000D_ The D700 is an ultra-compact, micro drive solution inverter drive range, designed for simple installation and set-up._x000D_ Features and Benefits_x000D_ • Simple cabling, the integrated spring clamps connect control and power lines quickly which ensures reliability and simple cabling._x000D_ • Easy parameterisation software FR-Configurator encourages easy functions such as graphical machine analysis to optimize the drive system._x000D_ • An integrated digital dial gives the user direct access to all of the important parameters._x000D_ • The integrated four digit LED display monitors and displays current operating values and alarm messages._x000D_ • Features a second transistor output which is sink selectable source logic safety input instead of sink logic._x000D_ • Directly connect to PLC's instead of safety relays._x000D_ • Features a Sensor-less vector control which enables exceptional speed and torque performance._x000D_ • Serial interface (RS485) as standard._x000D_ • Emergency safe stop input compliant to EN 61800-5-2._x000D_ • Maximum short-term overload capacity of 200% for 0.5s._x000D_ • Automatically restart after power failures._x000D_ • Direct connection of an external braking resistor which improves stopping power._x000D_ Typical Applications_x000D_ • The FR-D700 variable frequency drive (VFD) is typically used in standard applications due to it being user friendly and useful._x000D_ • You will usually find these types of VFD being applied in feeder and conveyor drives, machining tools, gates and door drives._x000D_ • Single phase inverter drives are suitable for a wide range of drive applications, ranging from simple fan and pump loads to high-torque machine control applications._x000D_ Can my VFD be mounted?_x000D_ Yes, your VFD can be mounted directly side by side due to its ultra-compact dimensions. A line within the FR-D700 series facilitates effective, space saving and heat dissipation through an approximate 1cm thick cooling plate._x000D_ How long is the service life of my Variable Frequency Drive?_x000D_ Your Inverter Drive is designed to have a service life of over ten years. This long service life is made possible through high performance heat resistance capacitors, cooling fans with sealed bearings and special lubricating grease. Any flow of cooling air that comes into contact with the VFD, only has contact with the heat sinks and not any electronic components – this means that no dust or dirt can gather. The circuit boards are protected against aggressive environments with single or double layer conformal coating, this is another great feature that prolongs the service life of the Inverter Drive._x000D_ Approvals_x000D_ CE, UL, cUL, GOST, RoHS_x000D_ The power rating of this Mitsubishi Inverter Drive is 0.2 kW, with a supply voltage of 230 V ac. The FR-D720S is part of the compact range with the overall length being 128mm, which makes it easy and simple to install and handle._x000D_ Mitsubishi D700 Range_x000D_ The range replaces the popular S500 and E500 series of drives and is fully compatible with other products in the Mitsubishi 'Micro' family, including the FX3U PLC and GT1020 operator interfaces.
