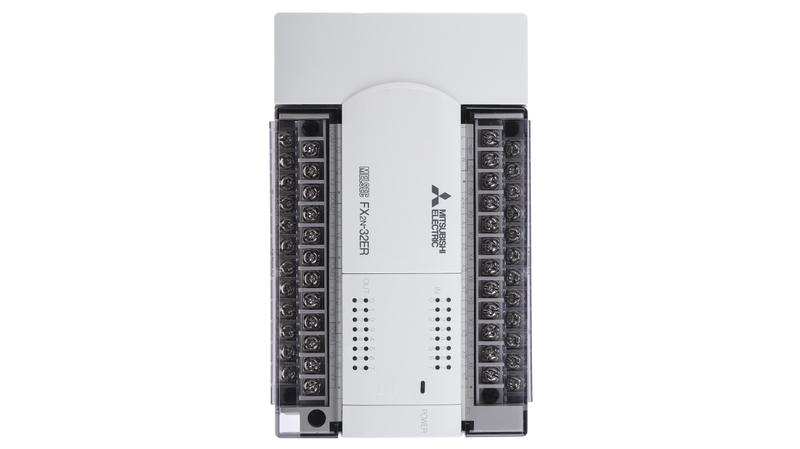

FX2N-32ER-ES/UL Mitsubishi PLC I/O Module for use with FX2N Series, 90 x 150 x 87 mm, FX2N Series, 100 → 240 V ac

Digital Expansion Units_x000D_ These look similar to FX2N Base Units and are available in 32 and 48 I/O formats. They attach to the right hand end of the Base Unit or Digital Expansion Blocks, and require an external supply of 100 – 240Vac. All inputs are opto-isolated, 24Vdc sink or source selectable to suit NPN or PNP sensors, and all outputs are relay type. Within Maximum I/O limitations, more than one of these may be used with an FX1N or FX2N Base Unit. They can be further expanded using Digital Expansion Blocks (see Digital Expansion Blocks above)._x000D_ Additional Modules for Mitsubishi FX1S, FX1N & FX2N PLC's_x000D_ Products in this range are for use with FX1S, FX1N and FX2N PLC, unless specified otherwise. All are DIN rail mount and are 90mm high and 87mm deep. The width varies and is tabled below._x000D_ All of the following products, except the Extension Cable, attach directly to the right hand end of the previous unit, block or module using the short integral lead.
