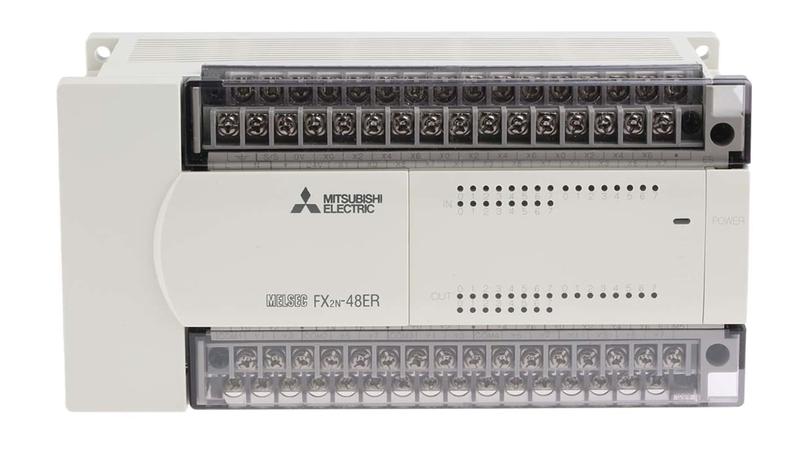

FX2N-48ER-ES/UL Mitsubishi PLC I/O Module for use with FX2N Series, 90 x 150 x 87 mm, FX2N Series, 100 → 240 V ac

Mitsubishi Digital Expansion Module_x000D_ The Mitsubishi digital expansion module is designed to use with FX1S, FX1N and FX2N PLCs. This module has 24 input and 24 relay type output points. It is attached to the right-hand end of the base unit or digital expansion blocks and requires an external supply of 100Vac to 240Vac. The input and output channels are added depending upon the size of the base unit._x000D_ Additional Modules for Mitsubishi FX1S, FX1N & FX2N PLC's_x000D_ Products in this range are for use with FX1S, FX1N and FX2N PLC unless specified otherwise. All are DIN rail mount and are 90mm high and 87mm deep. The width varies and is tabled below._x000D_ All of the following products, except the Extension Cable, attach directly to the right-hand end of the previous unit, block or module using the short integral lead._x000D_ Features and Benefits_x000D_ Inputs are opto-isolated_x000D_ 24VDC sink or source selectable to suit NPN or PNP sensors_x000D_ All outputs are relay type._x000D_ Response time 10ms_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ IP10 rated_x000D_ CE_x000D_ UL/cUL certified
