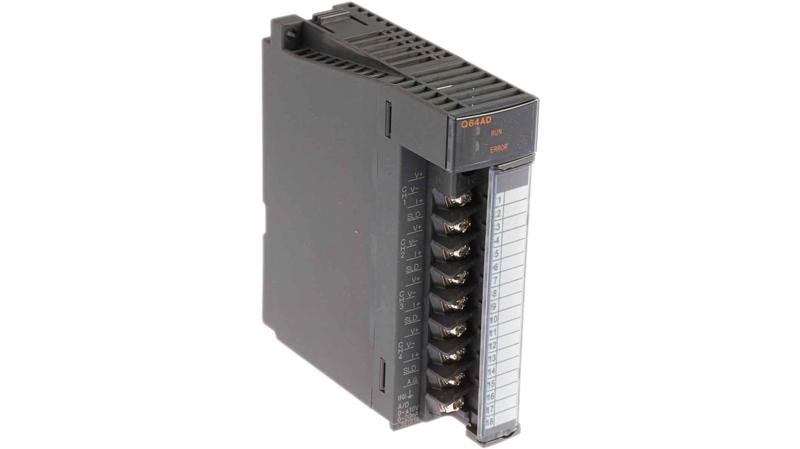

Q64AD Mitsubishi PLC I/O Module for use with MELSEC Q Series, 98 x 27.4 x 90 mm, Analogue, MELSEC Q, 5 V dc

Mitsubishi Analogue to Digital Converter Module_x000D_ The Mitsubishi MELSEC-Q series analogue to digital converter module has 4 channels, where the voltage input or current input can be selected for each channel. Analogue voltage input ranges between -10VDC to +10VDC and current ranges between 0-20mA (input resistance value is 250ohms)._x000D_ Mitsubishi Q Series Digital & Analogue I/O Modules_x000D_ The Q series is a modular system_x000D_ if the application demands more input units you simply add more to the system. In this way, it is easy to add input signal capacity._x000D_ Module dimensions - Depth: 90mm, Height: 98mm, Width: 27.4mm_x000D_ Features and Benefits_x000D_ 16bit signed binary resolution_x000D_ Fast conversion rate improves control_x000D_ High response time_x000D_ Rated operating supply voltage of 24VDC_x000D_ Built-in EEPROM for storing set-up data_x000D_ Only occupies very less I/O points which makes it great for compact systems_x000D_ Phototcoupler insulation between the input terminals and PC power_x000D_ High degree of accuracy_x000D_ Easy settings with GX Configurator-AD_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
