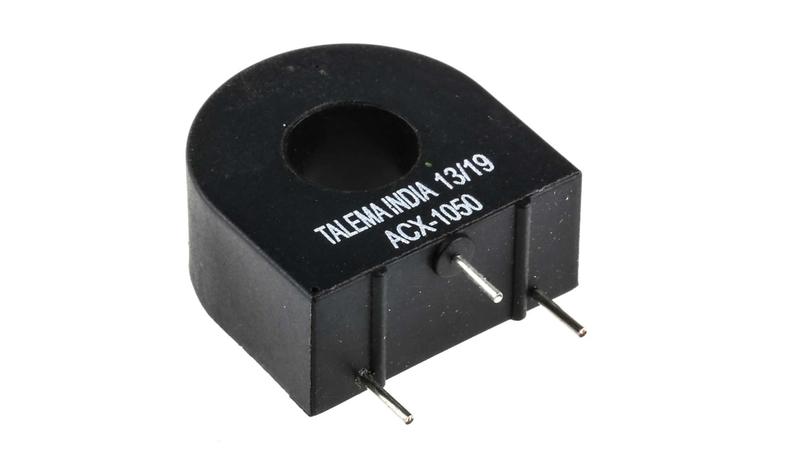

ACX-1050 Nuvotem Talema ACX Series Current Transformer, 50A Input, 50:1

Cable primary high accuracy current transformer_x000D_ Primary current range 50-150A_x000D_ 1% accuracy_x000D_ Operating frequency 50/60Hz_x000D_ Turns ratio 2500:1_x000D_ Rated burden resistance 33 Ω_x000D_ Dielectric with stand voltage 4KVrms_x000D_ Operating temperature range -40 to +85ºC_x000D_ All materials UL94-V0_x000D_ Nuvotem Talema Circuit Transformer_x000D_ The Nuvotem Talema circuit transformer has an input current of 50A. This PCB mount transformer has turned the ratio of 2500:1. It has rated burden resistance of 33ohm and dielectric withstand voltage of 4kVrms._x000D_ Features and Benefits_x000D_ Extremely low price_x000D_ Excellent quality_x000D_ 1% accuracy_x000D_ Operating frequency ranges between 50Hz and 60Hz_x000D_ Dimensions are 23.8 x 23.8 x 11.12mm_x000D_ Operating temperature ranges between -40°C and 85°C_x000D_ frequency range is 50/60Hz_x000D_ PC pin termination style_x000D_ Applications_x000D_ Sensing overload current_x000D_ Ground fault detection_x000D_ Metering_x000D_ Analog to digital circuits_x000D_ Certifications_x000D_ UL94-V0_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ Low Cost Current Sense Transformers
