CATCTLT20CB3K Optris CATCTLT20CB3K Temperature Sensor USB Infrared Temperature Sensor, 3m Cable, -50°C to +975°C

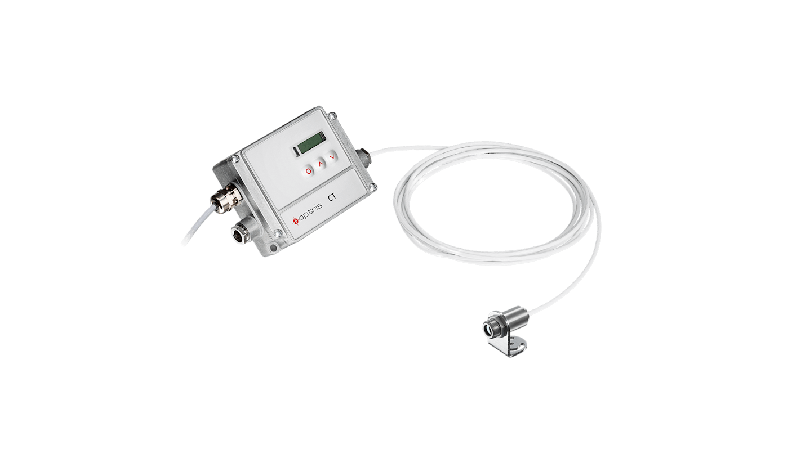

Compact Sensor Kit_x000D_ The pyrometer CT22 is equipped with one of the world’s smallest infrared sensors with a high optic resolution of 22:1._x000D_ The miniaturized stainless steel measuring head, optimally suited for installation in limited spaces._x000D_ The electronics box provides a flexible terminal device through selectable analog outputs as well as various optional digital interfaces. Additionaly the set up can be done via 3 buttons and a display right on the box._x000D_ The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products._x000D_ Temperature Range -50 to 975°C and Optical Resolution 22:1_x000D_ Micro Sensor Head withstand 180°C operating temperature_x000D_ Separate, configurable electronic box with LCD display and programming keys_x000D_ Multiple alternatives for analogue or digital output_x000D_ Free (Android/Windows) software for download_x000D_ Optional digital interface (RS485, Relay Profibus)_x000D_ Scope of Delivery_x000D_ CT pyrometer_x000D_ Mounting bracket and nut_x000D_ 3m head cable_x000D_ IR App connector_x000D_ Micro-USB cable and adapters USB-C / USB-A_x000D_ Software package Compact Connect_x000D_ Operators manual_x000D_ Accessories:_x000D_ CATACCTLAP Air purge collar, CATACCTMG Mounting Fork, CATACCTCF Close Focus Lens._x000D_ Interface: CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces)
