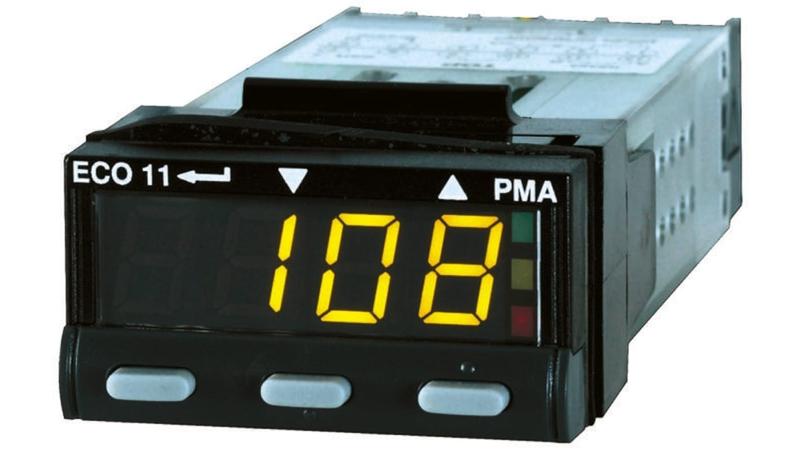

ECO11-21110-000 P.M.A ECO 11 PID Temperature Controller, 48 x 24 (1/32 DIN)mm, 2 Output Relay, SSR, 90 → 264 V ac Supply Voltage

PMA ECO 11 Temperature Controller_x000D_ The ECO 11 is a versatile, mini single loop controller and process indicator._x000D_ Due to its extremely compact dimensions, the ECO 11 can be installed even in the smallest machines. Its universal input and up to three switching outputs enable the controller to be adapted perfectly to the most varied automation tasks. The unit is configurable as a signaller or PID two-point controller with inverse (heating) or direct (cooling) characteristic._x000D_ • Indicator, signaller, or two-point controller_x000D_ • Output sense selectable direct/inverse_x000D_ • Accurate control behaviour with 250ms scanning cycle_x000D_ • High-precision universal input_x000D_ • Auto/manual switchover w/W2 from front panel_x000D_ • Up to three switching outputs (control output & alarms)_x000D_ • Output function selectable as control or alarm_x000D_ • RS 485 with Modbus RTU protocol_x000D_ • Front panel protection mode IP 66_x000D_ PMA Temperature Controllers
