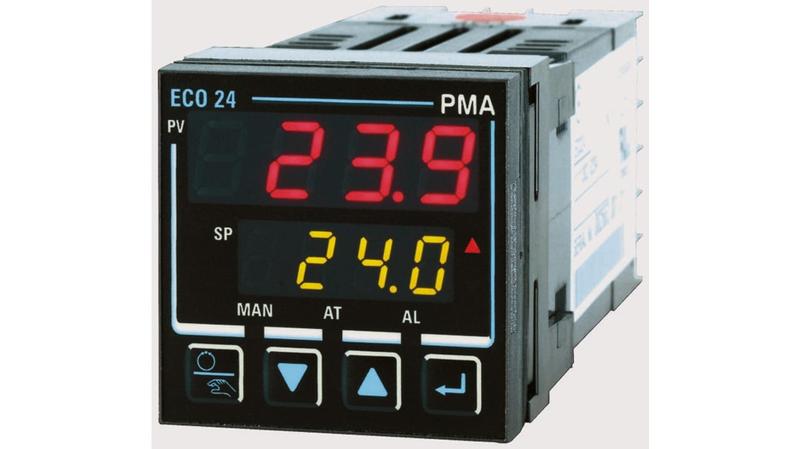

ECO24-111-1300-000 P.M.A ECO 24 PID Temperature Controller, 48 x 48mm, 3 Output, 100 → 264 V ac Supply Voltage

PMA ECO 24 Temperature Controller_x000D_ Due to its extremely compact dimensions, the PMA ECO 24 can be installed even in the smallest machines. Its universal input and the flexible modular concept for a wide range of output types enable the controller to be adapted perfectly to the most varied automation tasks._x000D_ Similarly, the unit is configurable as signaller, continuous, 2-point or 3-point PMA controller for heating or cooling, as well as heating/cooling tasks, i.e. for universal applications. Moreover, ’split-range’ operation is possible in all combinations (e.g. continuous/switching), and various alarm functions put a finishing touch to the comprehensive package._x000D_ • High-precision universal input_x000D_ • Accurate control behaviour with 250 ms scanning cycle_x000D_ • Up to three plug-in output modules_x000D_ • formA, V, relay, SSR driver or Triac_x000D_ • Output function selectable as control_x000D_ • Alarm, or measurement signal_x000D_ • Comprehensive galvanic isolation_x000D_ • External contact for 2nd setpoint_x000D_ • Auto/Manual switchover_x000D_ • Selectable setpoint ramp_x000D_ • RS 485 with Modbus RTU protocol_x000D_ • Front panel protection mode IP66_x000D_ • cULus recognised_x000D_ PMA Temperature Controllers
