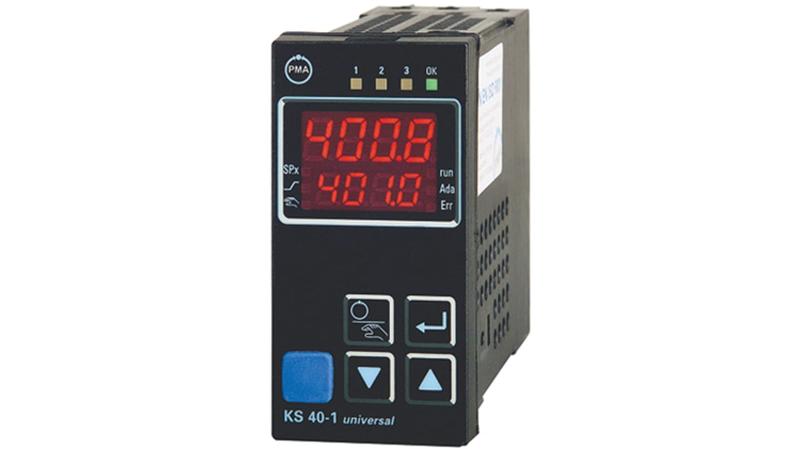

KS40-108-9090D-D51 P.M.A KS40 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 2 Output, 90 → 250 V ac Supply Voltage ON/OFF

P.M.A Temperature Controller_x000D_ The P.M.A KS40 series temperature controller has a supply voltage rating ranging from 90VAC to 250VAC. This high precision controller has a width of 48mm and a height of 96mm(1/8DIN). It has three process outputs that are three relays and two digital inputs and transmitter power supply. The controller unit that provides simple, 2-point (ON/OFF) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analogy input can be used for heating current measurement or as an external setpoint input. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a 2-wire transmitter._x000D_ Inclusions:_x000D_ German manual._x000D_ Features and Benefits_x000D_ Automatic/manual key_x000D_ BluePort front interface and blue control software_x000D_ Extended limit signalling function with latch_x000D_ It has flat pin connector_x000D_ Maintenance manager and error list_x000D_ Monitoring of heating current and input circuit_x000D_ Timer and programmer_x000D_ Applications_x000D_ 2 and 3 point control_x000D_ 2-stage burners_x000D_ 3-stage burners_x000D_ Boiler pressure control_x000D_ Burners and boilers_x000D_ Furnaces and ovens_x000D_ Modulating burners_x000D_ Plastics processing and driers_x000D_ Position control_x000D_ Synchronisation control_x000D_ Weather-compensation_x000D_ Certifications_x000D_ Front panel IP65 rated_x000D_ Housing IP20 rated_x000D_ Terminals IP00 rated_x000D_ Type tested to EN 14597 (replaces DIN 3440)_x000D_ UL approved
