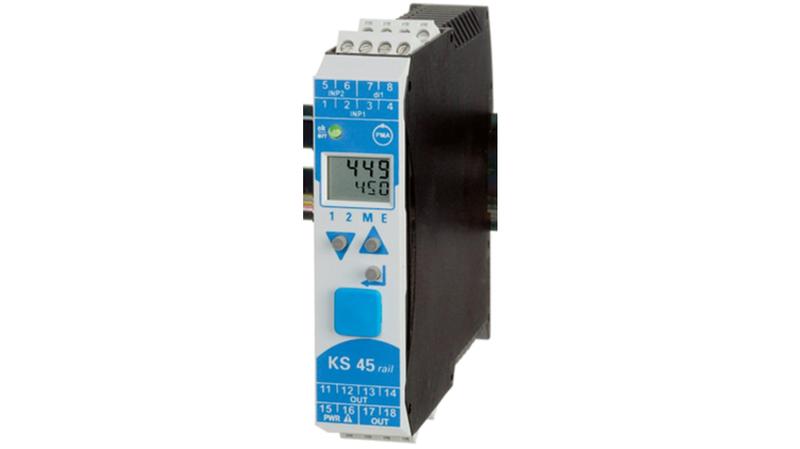

KS45-112-00000-000 P.M.A KS45 PID Temperature Controller, 99 x 22.5mm, 2 Output Relay, 90 → 260 V ac Supply Voltage ON/OFF

PMA KS 45 Temperature Controller_x000D_ The universal KS 45 controller is designed to provide precise and cost-effective temperature control. The controller output is configurable as a signaller, 2-point or continuous PID control, 3-point control with optional split range and 3-point stepping control._x000D_ A universal input is provided for the process value signal. A second analogue input is available for heating current measurement or for an external setpoint signal. The KS 45 has two switching outputs. The universal output is configurable as a voltage or current signal, for controlling solid-state relays or as a transmitter supply signal._x000D_ Galvanic isolation is provided between inputs and outputs as well as from the supply voltage and the communication interfaces._x000D_ The controller is ideal for use in the following applications: furnaces, ovens, burners and boilers, plastics processing, driers and climatic chambers, heat treatment plants, sterilizers and oxygen applications._x000D_ • Compact solution for distributed automation_x000D_ • Display and operating functions_x000D_ • 2 universal inputs for TC, RTD, R, U, I, O2_x000D_ • Universal output, relays / optocoupler outputs_x000D_ • Front interface and BlueControl®-software_x000D_ • RS 485 interface_x000D_ • Compact design, only 22.5 mm (0.87”) wide - saves space in the control cabinet_x000D_ • Clips onto top-hat DIN rail_x000D_ • Plug-in screw terminals or spring-clamp connectors - simple connection_x000D_ • Dual-line LC display with additional display elements - process values always in view_x000D_ • Convenient 3-key operation_x000D_ • Direct communication between mounted controllers, fieldbus connections via bus coupler - simple integration into PLC/PC_x000D_ • Universal input- also reduces stock keeping_x000D_ • Second analogue input - for external setpoint or heating current - as universal input (optional)_x000D_ • Universal high-resolution output as combined voltage/current output_x000D_ • Two output relays or optocoupler outputs_x000D_ • Fast 100 ms response - also suitable for fast signals_x000D_ • 2-point, 3-point, 3-point stepping, continuous output_x000D_ • Self-tuning function_x000D_ PMA Temperature Controllers
