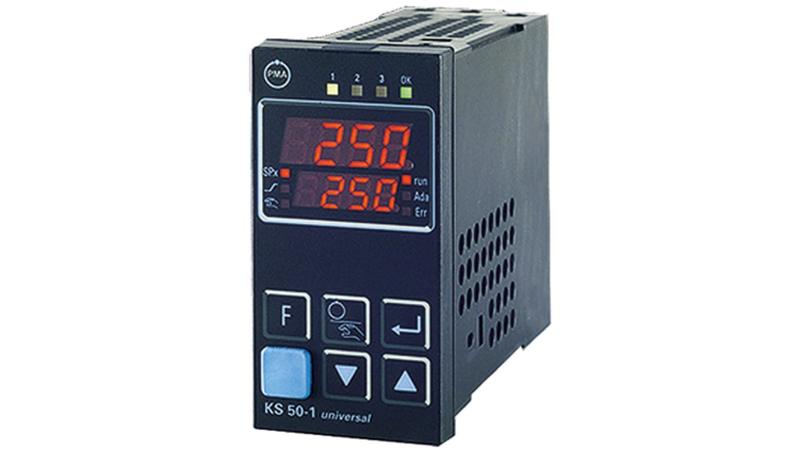

KS50-100-0000D-000 P.M.A KS50 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 2 Output Relay, 90 → 250 V ac Supply Voltage ON/OFF

PMA KS 50-1 Temperature Controller_x000D_ The universal KS 50-1 temperature controller is intended for precise and cost-effective control tasks. The instrument provides simple 2-point (on/off) control, continuous PID control or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external set-point input._x000D_ The KS 50-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter. Optionally there are two additional optocoupler outputs that can be used freely._x000D_ The controller is suitable for a number of industry applications including: Furnaces and ovens, Burners and boilers, Plastics processing, Hot runners, Driers, Climatic chambers & Heat treatment plants._x000D_ • Universal continuous/switching version, i.e. reduced stocks_x000D_ • 100ms cycle time, i.e. also suitable for fast control loops_x000D_ • 20ms as shortest pulse for very fast / strong actuators_x000D_ • Freely configurable analog output, e.g. as process value output_x000D_ • Customer-specific linearisation for all sensors_x000D_ • Settings can be blocked via password and internal switch for high security_x000D_ • Extended temperature range up to 60 °C allows mounting close to the process_x000D_ • Easy 2-point or offset measurement correction_x000D_ • Emergency operation after sensor break by means of the "output hold" function_x000D_ • Logical combination of digital outputs, e.g. for general alarm_x000D_ • Programmer with 10 segments and "end" signal_x000D_ • RS 422/485 Modbus RTU interface_x000D_ • Built-in transmitter power supply_x000D_ • Splash-water proof front (IP65)_x000D_ Supplied with_x000D_ German Manual_x000D_ PMA Temperature Controllers
